Model No: LOKEN-180
Competitive Price Seplos 51.2V 180Ah 9.2KWh NCM Lithium Battery Pack With LCD Solar Home Energy Storage
If you want the wholesale price, please do not hesitate to contact us.
minimum order :
1 unit
Supply Ability :
10000unit / Month
Stock Time :
15-20Day
Country of Origin :
China
Quantity :

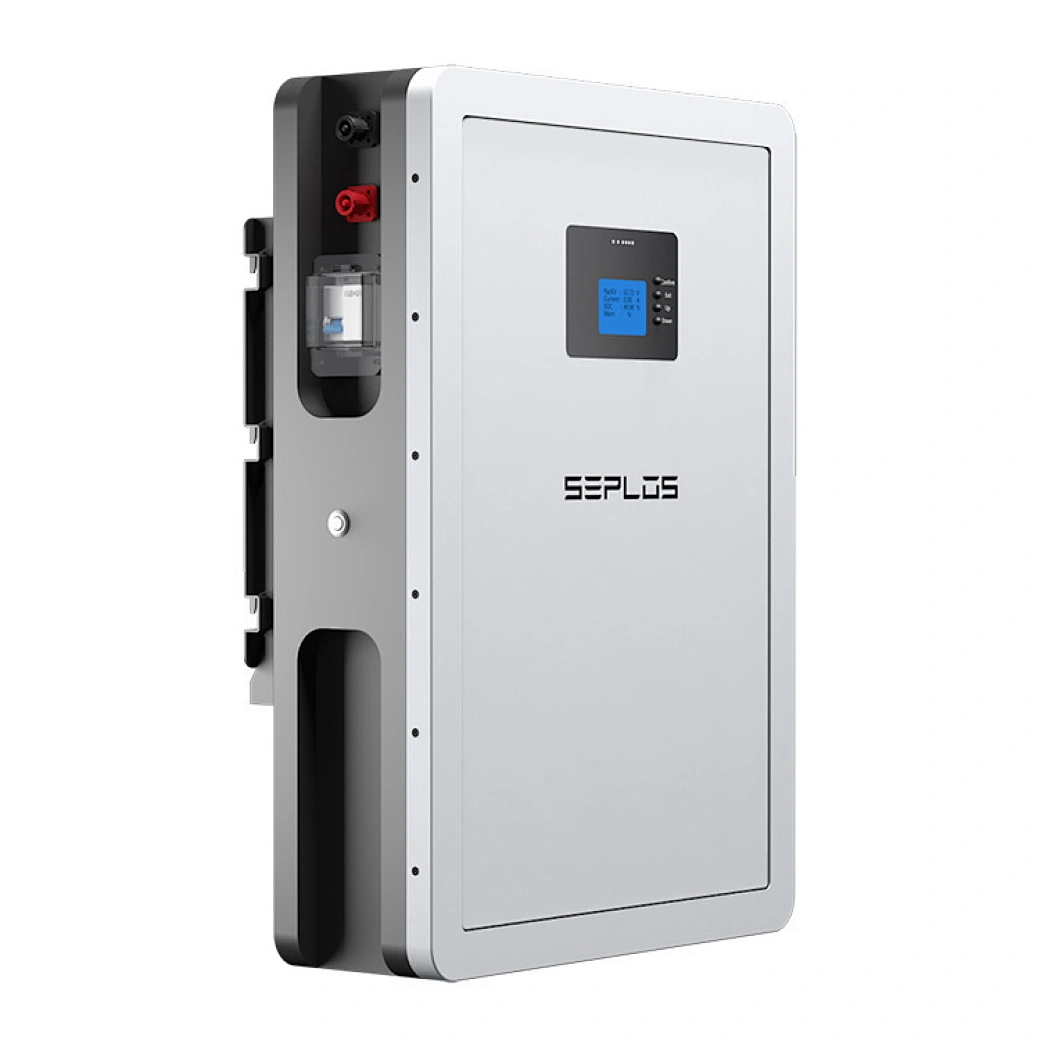

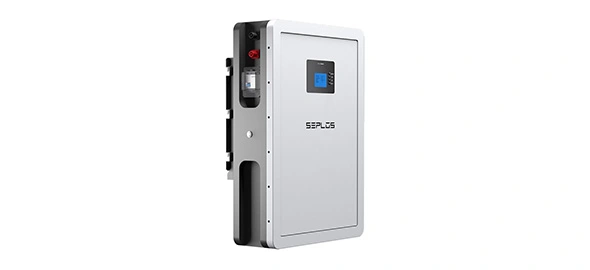

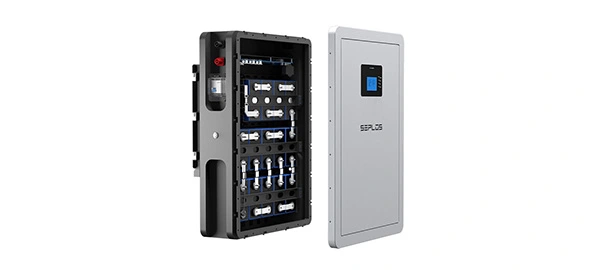

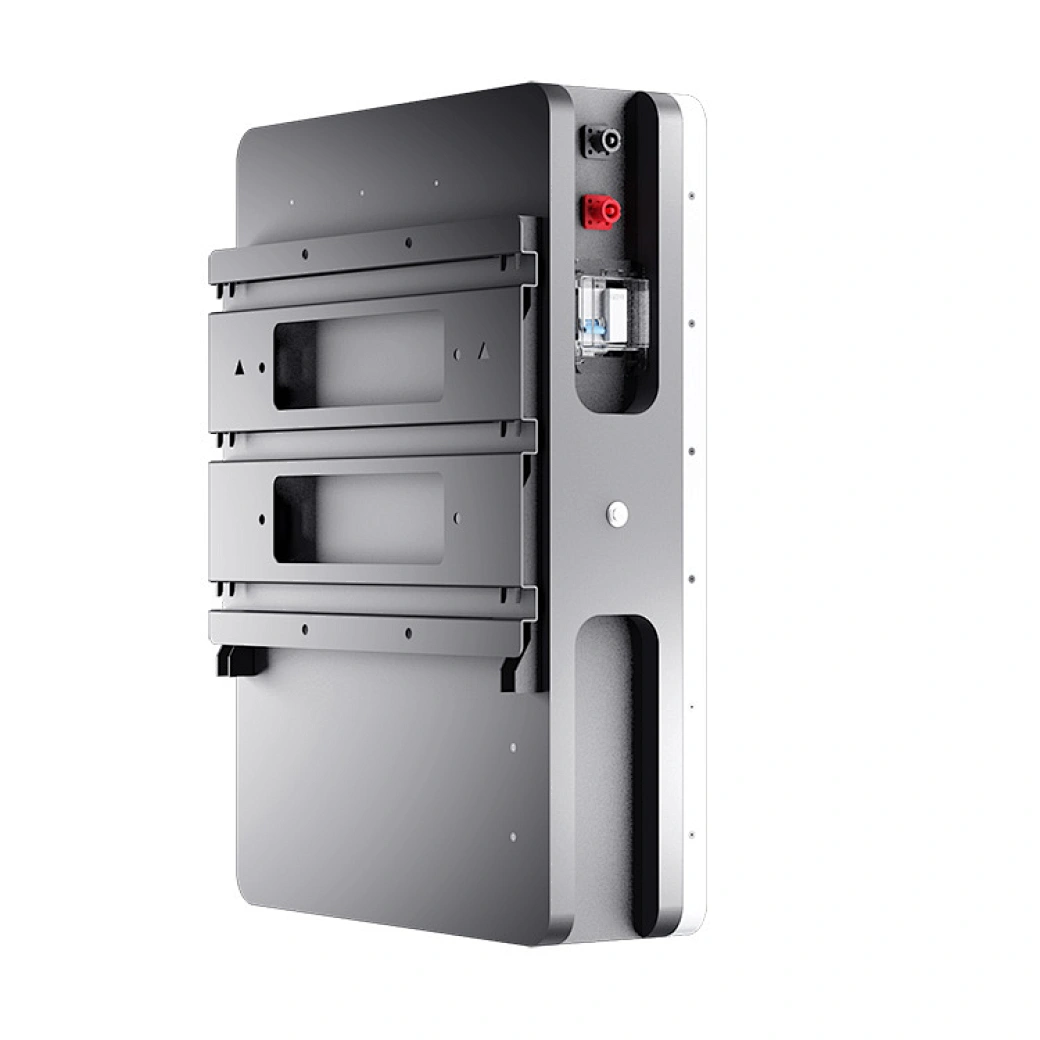

Seplos LOKEN 180 is a 9.2kwh lithium battery pack used for energy storage. It's a low voltage 180ah 48v NCM battery pack. It's compatible with most inverter brands in the market.
We also have other 24V, and 48V lithium battery available, please contact us for more details.
Parameter
| Item | Specifications |
Rated energy(kWh) | 9.2KWh |
| Configuration | 1P14S |
| Nominal Voltage(V) | 50.5V |
| Nominal Capacity(Ah) | 180Ah |
| Working Voltage(V) | 39.2V~58.8V |
| Standard charge/discharge Current(A) | 59A @25±2℃ |
| Maximum charge/discharge current | 150A@25±2℃ |
| Working Temperature | 0～40℃(Charge) -20～40℃(Discharge) |
| Weight(Kg) | 67Kg±5kg |
| Dimension(mm) | (730)×(510)×(175)mm |
| Cycle life | 1500 cycles @25℃ 59A Charging/discharging 80% DOD |
| Communication mode | CAN&RS485 |
Item Highlight
- High-safety LifePo4 Battery
- BMS built-in Bluetooth module
- IP 65 level protection
- Come with LCD screen 3.0
- Support 485 and CAN communication
- Competitive Price (Order a large quantity of this 48v lifepo4 battery pack, and contact the sales to get the lowest price )
Item Detail
Low Voltage 48V Energy Storage Solution - Suitable Inverters
| Brand | Protocol | Communication | Versions |
| Pylontech | CAN-Bus-Protocol-PYLON | CAN | V1.3 |
| Goodwe | Goodwe Communication Protocol | CAN | V1.5 |
| Lolis | CAN Communication Protocol | CAN | V1.0 |
| Sofar | BMS CAN BUS Protocol | CAN | V1.0 |
| Growatt-SPF | Growatt BMS CAN-Bus-Protocol-Low-Voltage | CAN | V1.05 |
| Growatt-SPH | Growatt BMS Communication Protocol Of Growatt Low Voltage Battery | CAN | V1.01 |
| SMA | FSS-ConnectingBat-TI-EN-20W | CAN | V2.0 |
| Victron | Can-Bus_Bms_Protocol | CAN | V1.0 |
| LUXPOWER | Luxpowertek Battery CAN Protocol | CAN | V1.0 |
| Studer | Technical Specification Studer BMS Protocol | CAN | V1.03 |
| TBB | TBB BMS CAN Communication V1.02 | CAN | V1.02 |
| Deye | CAN-Bus-Protocol-PYLON-V1.3 | CAN | V1.0 |
| Sorocec | 2_CAN Protocol 1.0 | CAN | V1.0 |
| MEGAREVO | Hybrid Inverter_5K_BMS Protocol V1.01 | CAN | V1.01 |
| Amensolar | CAN-Bus-Protocol-PYLON | CAN | V1.0 |
| Sacolar | Growatt BMS CAN-Bus-Protocol-Low-Voltage | CAN | V1.05 |
| MUST | PV1800F-CAN Communication Protocol | CAN | V1.04.04 |
| AFORE | Luxpowertek Battery CAN Protocol | CAN | V1.0 |
| Pylontech | RS485-Protocol-Pylon-Low-Voltage | 485 | V3.5 |
| Voltronic Power | Voltronic Inverter And BMS 485 Communication Protocol | 485 | V1.0 |
| SRNE | PACE BMS Modbus Protocol For RS485 | 485 | V1.3 |
| Deye | RS485-Protocol-Pylon-Low-Voltage | 485 | V1.0 |
| Growatt-SPF | SPF BMS RS485 | 485 | V2.01 |
