Features

• Suitable for SEPLOS 3.2V 206Ah LiFePO4 prismatic cells.
• Battery cell is made from lithium iron phosphate (LiFePO4) with safety performance and longer cycle life.
• Specially designed plastic cell holder features fire proof and insulation. 8 cells in series composes a battery module, and two modules in series, then connected with BMS, composes a SEPLOS PUSUNG battery pack.
• BMS has over-discharge, over-charge, over-current, high and low temperature warning and protection functions.
• BMS monitors the charge and discharge state, and balance the current and voltage of each cell.
• BMS comes with upper computer system for real-time cell and pack voltage, current, temperature, and battery status monitoring and recording.
• Flexible configuration, max. 16 packs can be connected in parallel for expanding capacity and power with 8 DIP switches.

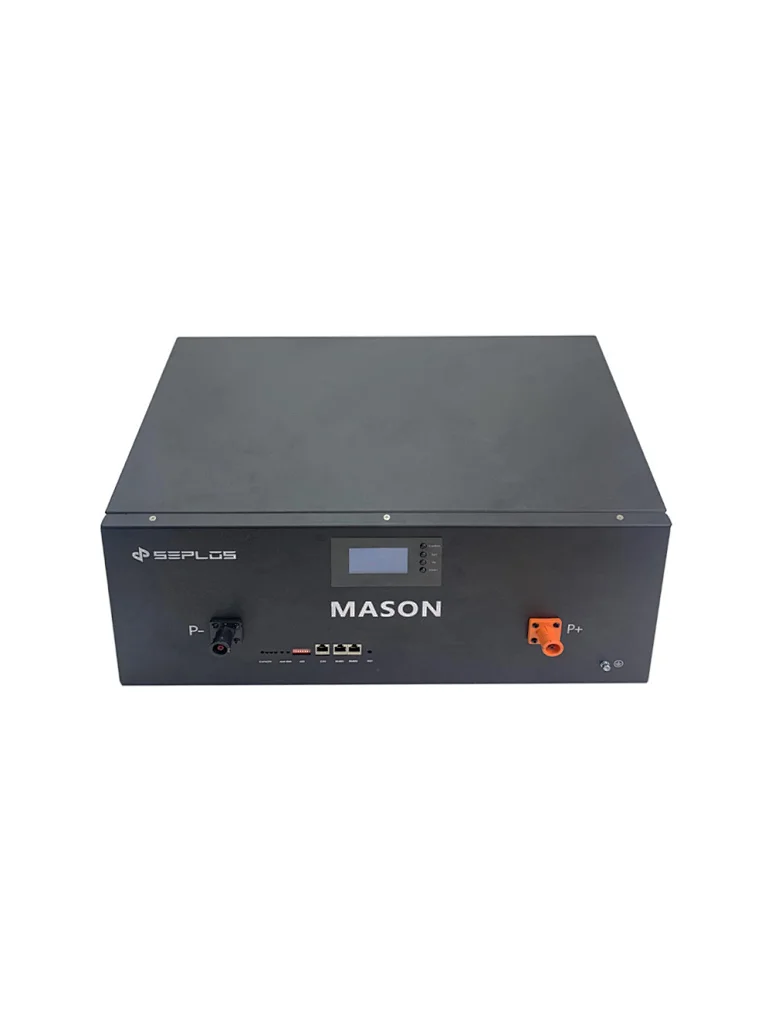

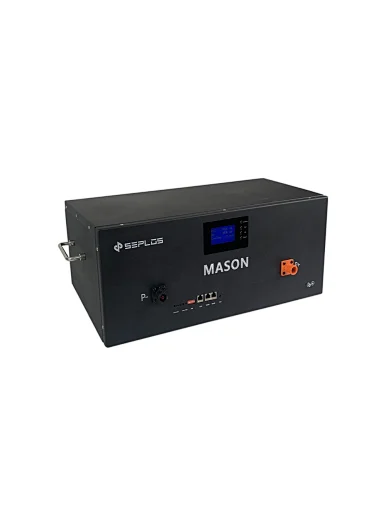

• Pre-programmed with multi-protocols, SEPLOS MASON-206 51.2V 206Ah works with multi-brands of inverters. Check the communication inverter list

Package list

• 1 * Battery Case (Bottom case, Front Panel, Top Bracket, Front Bracket, Top cover)
• 1 * 48V 200A 16S SEPLOS BMS
• 1 * 58V 400A Fuse
• 4 * Handle
• 2 * PCB Board for BMS and Cell Connection
• 3 * Upper and Lower Latch lock
• 1 * LCD Screen
• 1 * LCD Screen Sticker
• 4 * Button Cap
• 3 * Wires (LCD Screen wire, PCB board A and PCB board Connector)
• 2 * Battery Terminals (P+ Terminal and P- Terminal)

Other components includes:

• 6 * Copper bus bars (BMS connection)
• 15 * Aluminum bus bars (Cell connection)
• 10 * Epoxy sheet (Between cell and the case)
• 26 * EVA Tape (Between cells)
• 1 * PC sheet (Top cover)

Screws Details:

• 12 * Phillip Hex M4 * 8mm (PCB board fix)
• 9 * Phillip Hex M5 * 8mm + Washer + Spring Set(Ground cable and top bracket fix)
•  7 * Phillip Hex M6 * 25mm + Washer + Spring Set(Front Panel fix)
• 10 * Phillip Round M3 * 8mm + Washer + Spring Set(BMS and LCD Screen fix)
• 12 * Phillip Pan M5 * 10mm (Latch fix)
• 16 * Hexagan Socket Pan M4 * 10mm (P+/P- Terminals fix)
• 42 * Hexagan Socket Countersunk M4 * 10mm (Handle and battery case)
• 4 * Phillip Hex M6 * 14mm + Washer + Spring Set(foot fix)
• 5 * Phillip Hex M8 * 10mm + Washer + Spring Set (P+/P- Bus bar fix)
• 8 * Phillip Round M5 * 10mm + Washer

This Seplos lithium phosphate battery pack designed by Seplos technology will suitable for multi-brands of inverters as below:



Applications
