Model No: MASON-24280-DIY-Without Cells
Seplos 25.6V 280Ah LiFePO4 Lithium Phosphate Battery Pack DIY Kits Set Case Assemble Box Without Cells
If you want wholesale price, please do not hesitate to contact us.
minimum order :
1 set
Supply Ability :
10000set / Month
Stock Time :
15-20Day
Country of Origin :
China
Quantity :
The battery pack DIY kits bundle includes all the parts and materials to assemble a 25.6V 280Ah battery pack for home energy storage and solar battery storage.
The packing list is as follows, please check before formal assembly.

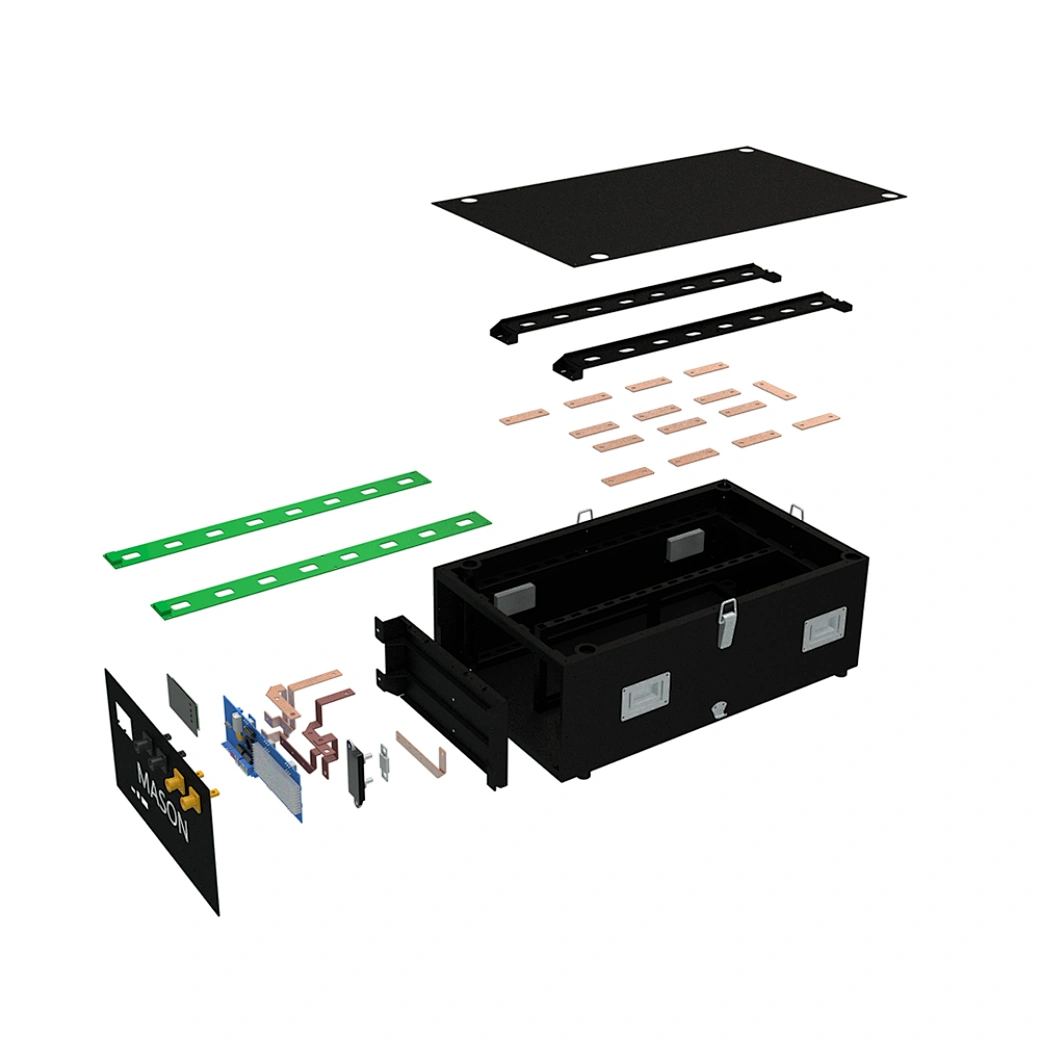

Package List
| Item | |
| Main Part | |
1 | 1 * Battery Case (Bottom case, Front Panel, Top Bracket, Front Bracket, Top cover) |
| 2 | 1 * 24V 200A 16S Seplos BMS |
| 3 | 1 * 58V 400A Fuse |
| 4 | 4 * Handle |
| 5 | 2 * PCB Board for BMS and Cell Connection |
| 6 | 3 *Upper and Lower Latch lock |
| 7 | 1 * LCD Screen |
| 8 | 1 * LCD Screen Sticker |
| 9 | 4 * Button Cap |
| 10 | 3 * Wires (LCD Screen wire, PCB board A and PCB board Connector) |
| 11 | 2 * Battery Terminals (P+ Terminal and P- Terminal) |
| Other Components | |
| 1 | 6 * Copper bus bars (BMS connection) |
| 2 | 15 * Aluminum bus bars (Cell connection) |
| 3 | 10 * Epoxy sheet (Between cell and the case) |
| 4 | 26 * EVA Tape (Between cells) |
| 5 | 1 * PC sheet (Top cover) |
| Screws Details | |
| 1 | 12 * Phillip Hex M4 * 8mm (PCB board fix) |
| 2 | 9 * Phillip Hex M5 * 8mm + Washer + Spring Set(Ground cable and top bracket fix) |
| 3 | 7 * Phillip Hex M6 * 25mm + Washer + Spring Set(Front Panel fix) |
| 4 | 10 * Phillip Round M3 * 8mm + Washer + Spring Set(BMS and LCD Screen fix) |
| 5 | 12 * Phillip Pan M5 * 10mm (Latch fix) |
| 6 | 16 * Hexagon Socket Pan M4 * 10mm (P+/P- Terminals fix) |
| 7 | 42 * Hexagon Socket Countersunk M4 * 10mm (Handle and battery case) |
| 8 | 4 * Phillip Hex M6 * 14mm + Washer + Spring Set(foot fix) |
| 9 | 5 * Phillip Hex M8 * 10mm + Washer + Spring Set (P+/P- Bus bar fix) |
| 10 | 8 * Phillip Round M5 * 10mm + Washer |
Low Voltage 48V Energy Storage Solution - Suitable Inverters
| Brand | Protocol | Communication | Versions |
| Pylontech | CAN-Bus-Protocol-PYLON | CAN | V1.3 |
| Goodwe | Goodwe Communication Protocol | CAN | V1.5 |
| Lolis | CAN Communication Protocol | CAN | V1.0 |
| Sofar | BMS CAN BUS Protocol | CAN | V1.0 |
| Growatt-SPF | Growatt BMS CAN-Bus-Protocol-Low-Voltage | CAN | V1.05 |
| Growatt-SPH | Growatt BMS Communication Protocol Of Growatt Low Voltage Battery | CAN | V1.01 |
| SMA | FSS-ConnectingBat-TI-EN-20W | CAN | V2.0 |
| Victron | Can-Bus_Bms_Protocol | CAN | V1.0 |
| LUXPOWER | Luxpowertek Battery CAN Protocol | CAN | V1.0 |
| Studer | Technical Specification Studer BMS Protocol | CAN | V1.03 |
| TBB | TBB BMS CAN Communication V1.02 | CAN | V1.02 |
| Deye | CAN-Bus-Protocol-PYLON-V1.3 | CAN | V1.0 |
| Sorocec | 2_CAN Protocol 1.0 | CAN | V1.0 |
| MEGAREVO | Hybrid Inverter_5K_BMS Protocol V1.01 | CAN | V1.01 |
| Amensolar | CAN-Bus-Protocol-PYLON | CAN | V1.0 |
| Sacolar | Growatt BMS CAN-Bus-Protocol-Low-Voltage | CAN | V1.05 |
| MUST | PV1800F-CAN Communication Protocol | CAN | V1.04.04 |
| AFORE | Luxpowertek Battery CAN Protocol | CAN | V1.0 |
| Pylontech | RS485-Protocol-Pylon-Low-Voltage | 485 | V3.5 |
| Voltronic Power | Voltronic Inverter And BMS 485 Communication Protocol | 485 | V1.0 |
| SRNE | PACE BMS Modbus Protocol For RS485 | 485 | V1.3 |
| Deye | RS485-Protocol-Pylon-Low-Voltage | 485 | V1.0 |
| Growatt-SPF | SPF BMS RS485 | 485 | V2.01 |
