Seplos LCD Screen For Lithium Phosphate Battery Pack Lifepo4 Smart BMS
price

US $20.00 / piece

LCD
1 piece
10000piece /
China
5-7Day
If you want wholesale price, please do not hesitate to contact us.
Quantity

Dimensions:

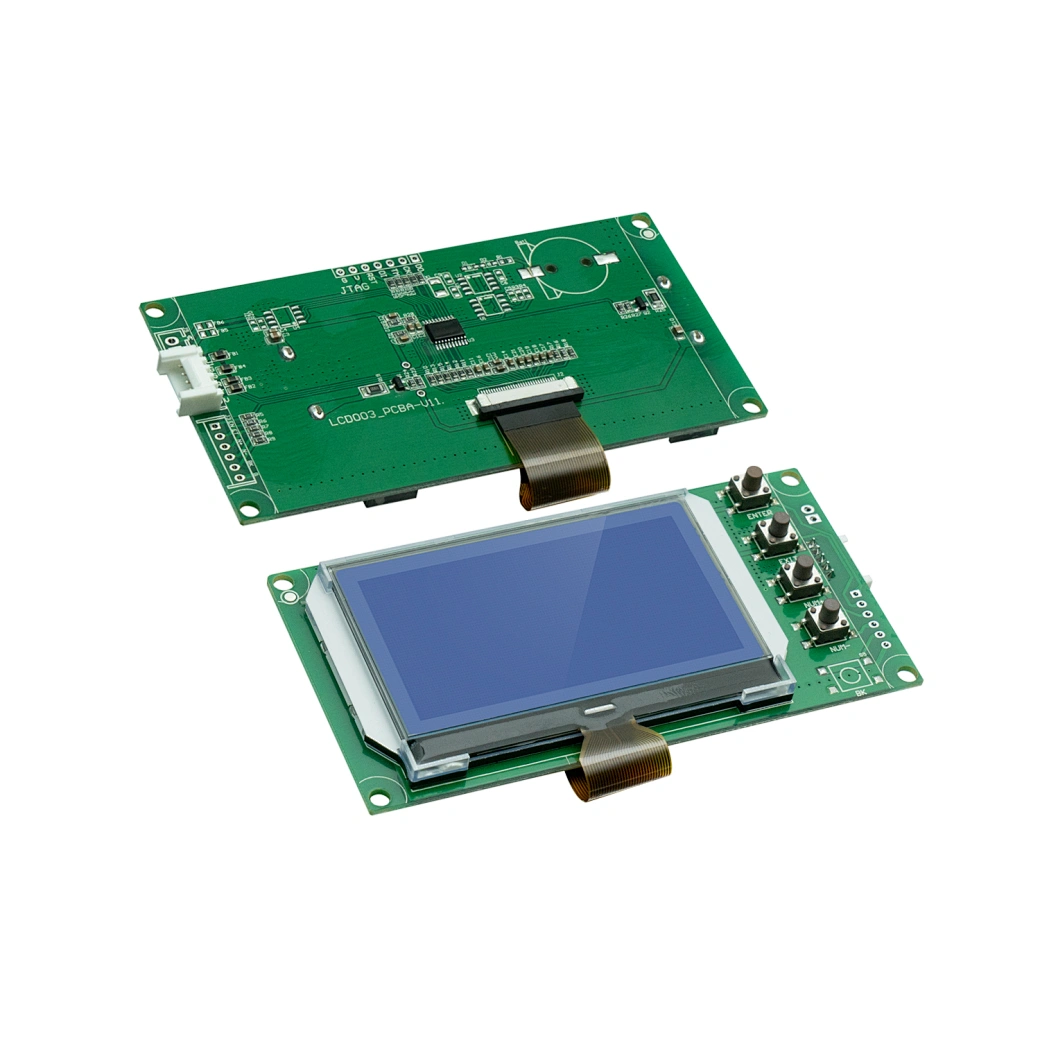

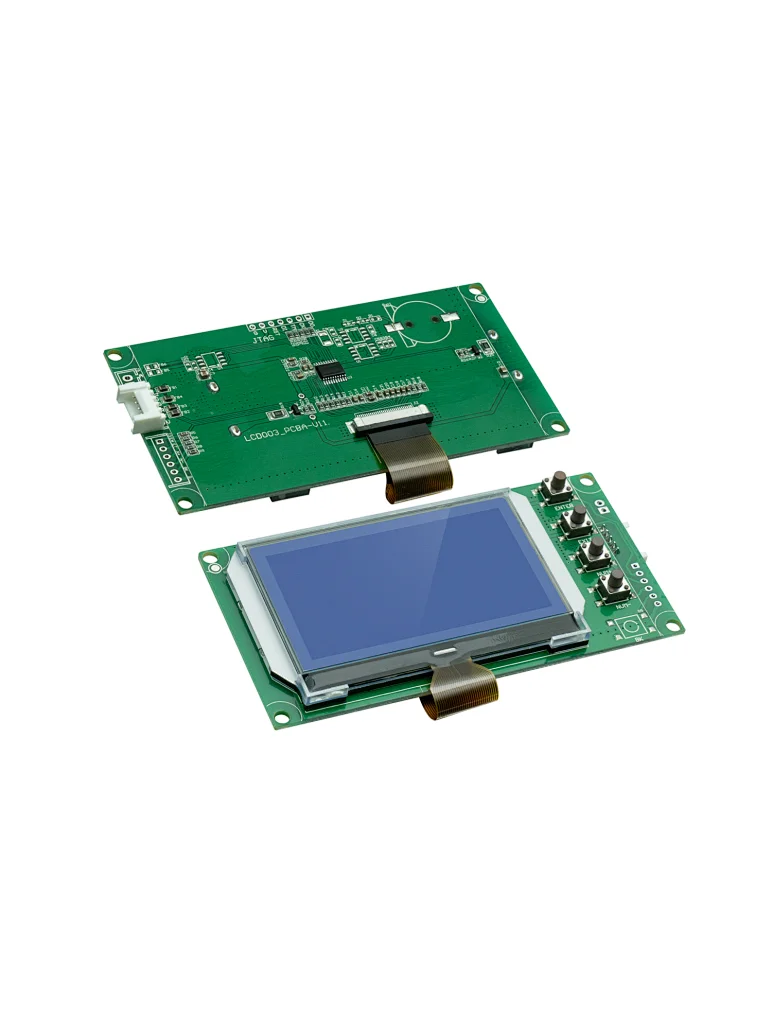

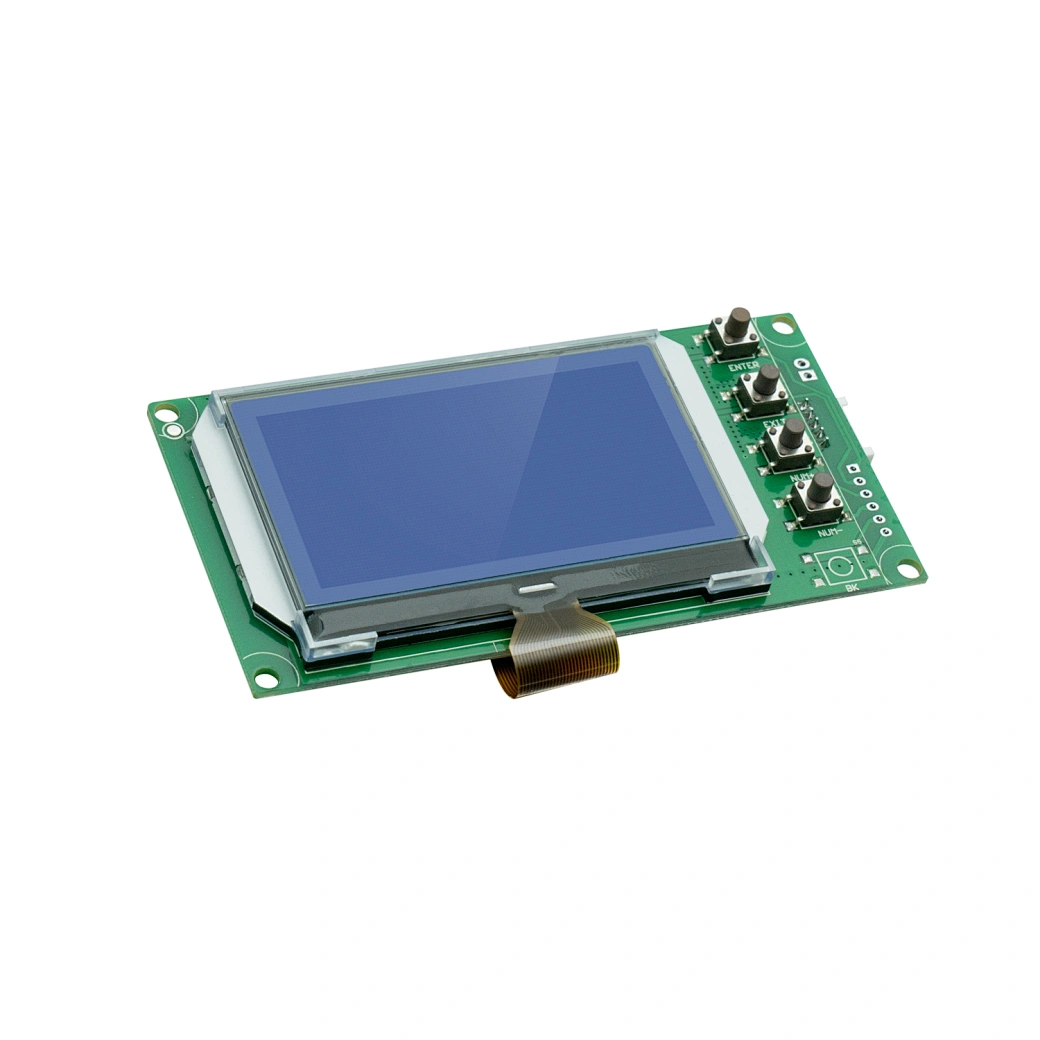

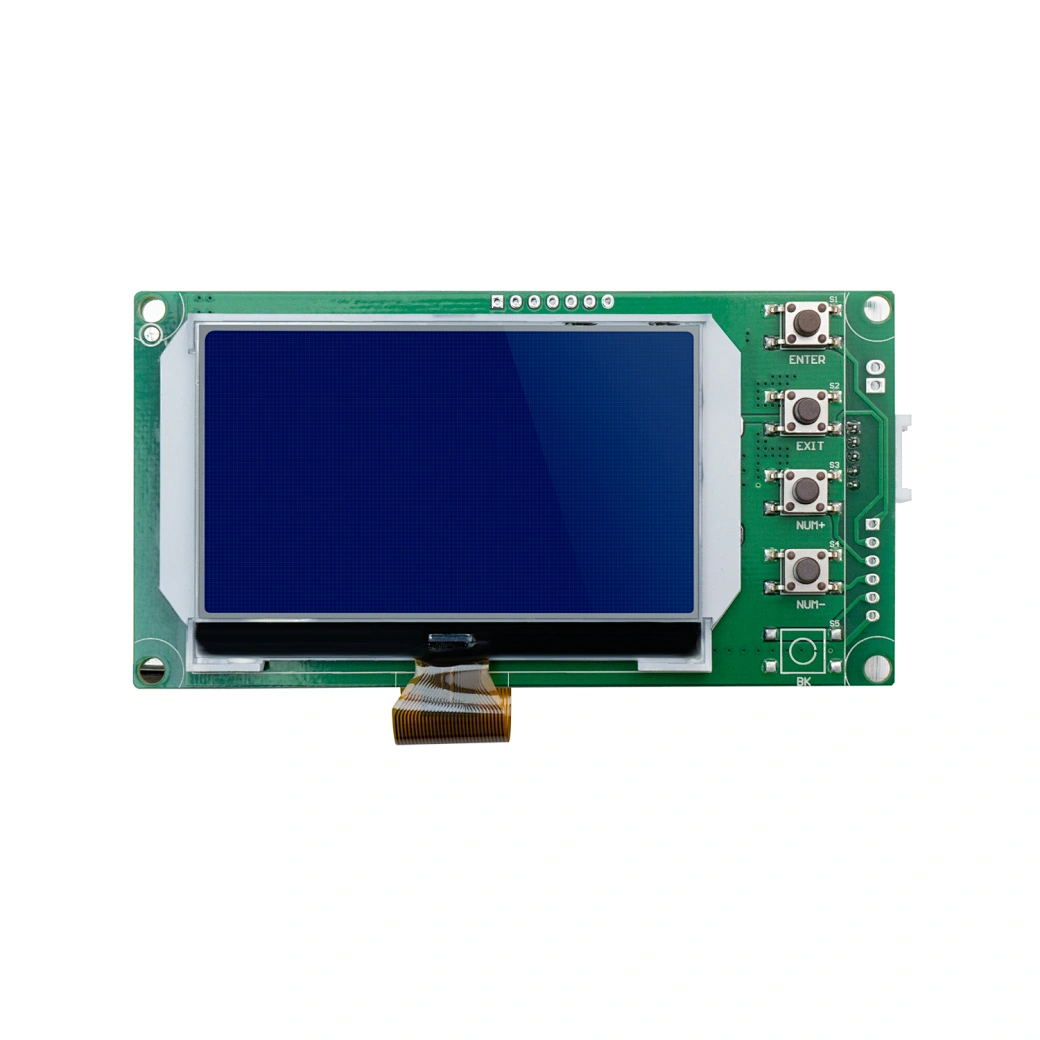

LCD Screen PCB board dimension: 105mm (L) * 55mm (W) * 6.8mm (H)
Display area size: 66.3*38.3mm
Button diameter: 3.5mm

Functions:

Home Page:

  • PackV: Pack total voltage
  • Current: Current in and current out
  • SOC: The remaining capacity
  • Warn: Warning status

Menu Page:

  • CellV: Individual cell voltage monitoring
  • Temperature: Temperature monitoring
  • Warn: Warning status monitoring
  • Capacity: Capacity monitoring

Warning Page:

  • OV-Warn: High voltage warning
  • OV-Prot: Over voltage protection
  • UV-Warn: Low voltage warning
  • UV-Prot: Under voltage protection
  • OT-Warn:High temperature warning
  • OT-Prot: Over temperature protection
  • UT-Warn: Low temperature warning
  • UT-Prot: Low temperature protection
  • OC-Warn: Over current warning
  • OC-Prot: over current protection
  • CAPA-Warn: Remaining capacity warning
  • OFF-USE: Cell failure warning
  • SCP: Short-circuit protection
  • Capacity Page
  • FCC: Pack total capacity
  • Rm: Remaining capacity
  • Cycle Time: cycle times
