Model No: HITEN-HV-AC-S5

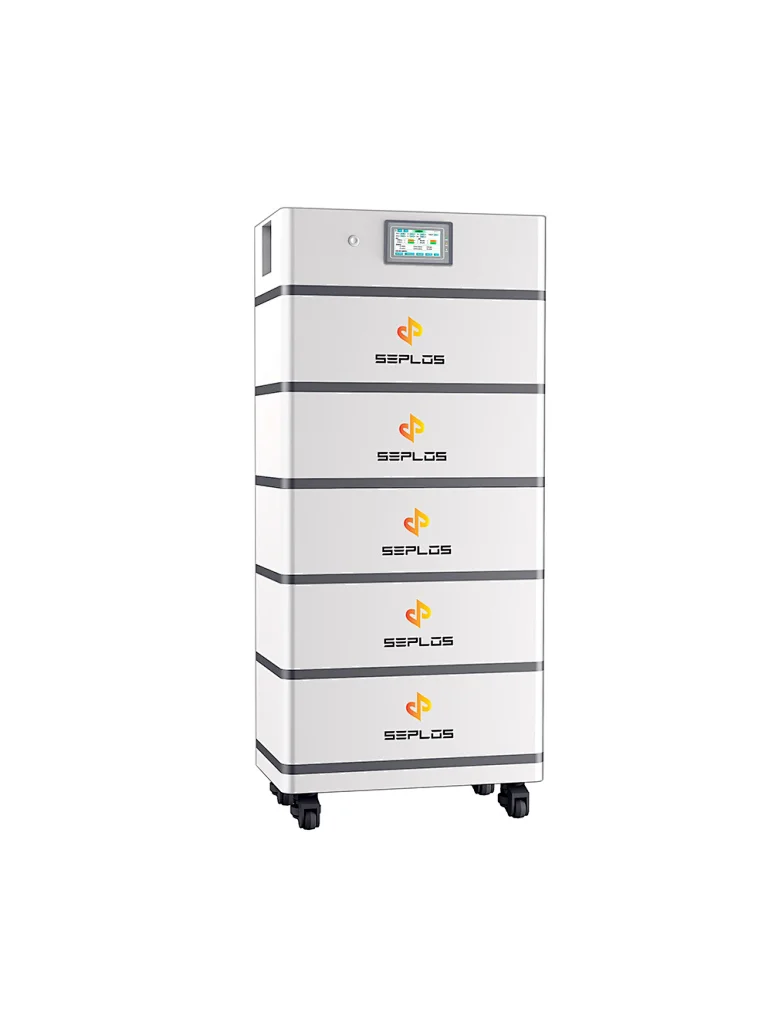

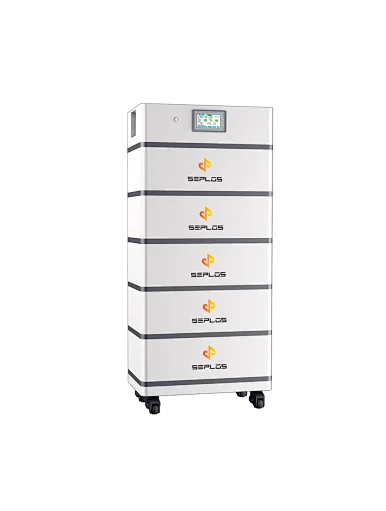

Seplos 512V 28KWh Lithium Iron Phosphate LiFePO4 Battery Pack Energy Storage Systems
If you want wholesale price, please do not hesitate to contact us.
minimum order :
1 set
Supply Ability :
1000set / Month
Stock Time :
15-20Day
Country of Origin :
China
Quantity :
Seplos Hiten is a high voltage energy storage system, and can do the following:
- Store energy from solar arrays or wind turbines for use later when it’s dark or the wind isn’t blowing.
- Peak shaving: power from the battery is used to reduce the maximum power drawn from the utility. This can result in cost savings in some jurisdictions.
- Load shifting: power from the battery can be used to reduce the power drawn from the utility during peak hours when rates are high. The battery is recharged during off-peak hours when the rates are lower.
- Demand response: in some areas, the local utility will pay users to provide power to the grid when demand is high. This is called “net metering.” Power flows from the battery to the grid when demand is high, then the battery is recharged when demand is lower and grid power is cheaper.
Parameter
| Item | Specifications |
Rated energy(kWh) | 28KWh |

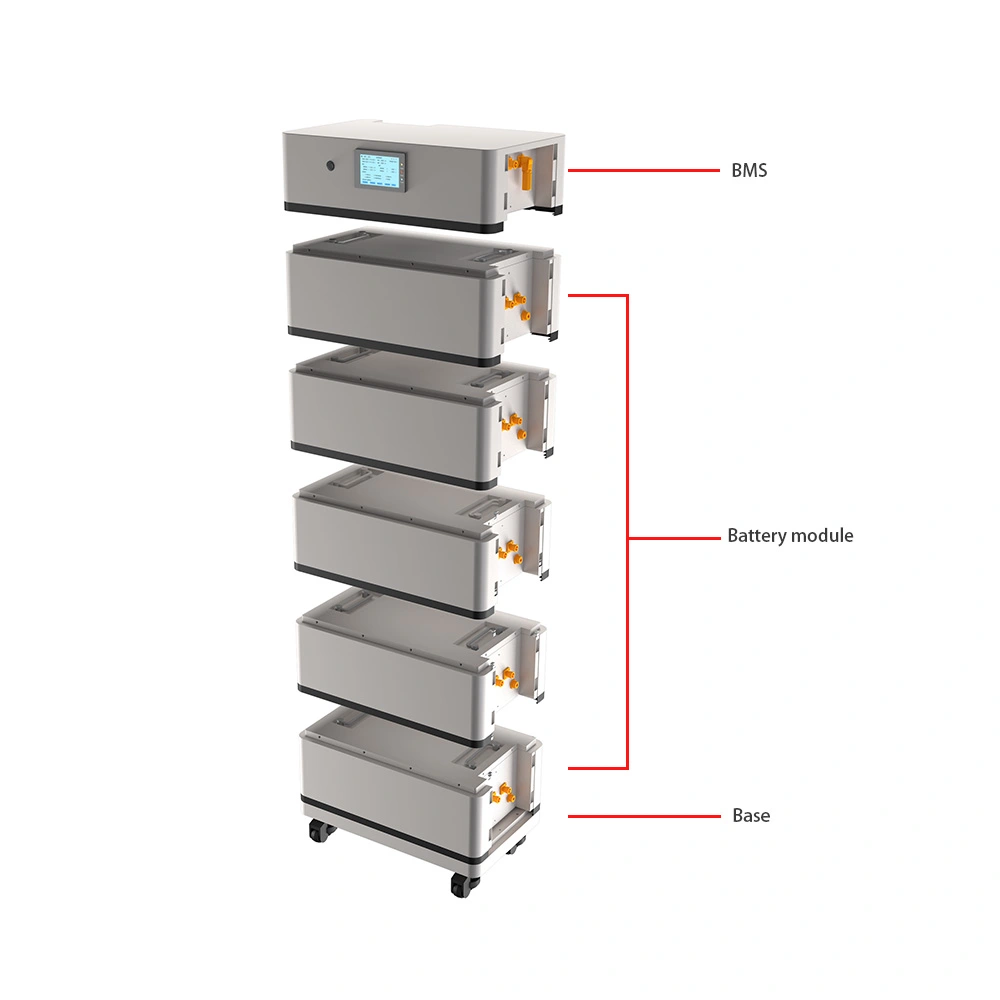

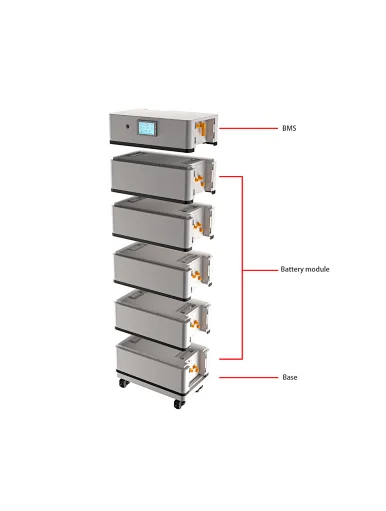

| Configuration | 5*32S1P |
| Nominal Voltage(V) | 512V |
| Nominal Capacity(Ah) | 55Ah |
| Working Voltage(V) | 432-584V |
| Rated charge/ discharge Current(A) | 50A |
| Rated charge/ discharge power( KW) | 25.6KW |
| Working Temperature | - 15-45(°C) |
| Weight(Kg) | 265± 10KG |
| Cell chemistry | Lithium Iron Phosphate |
| Cycle life | 5000 cycles |

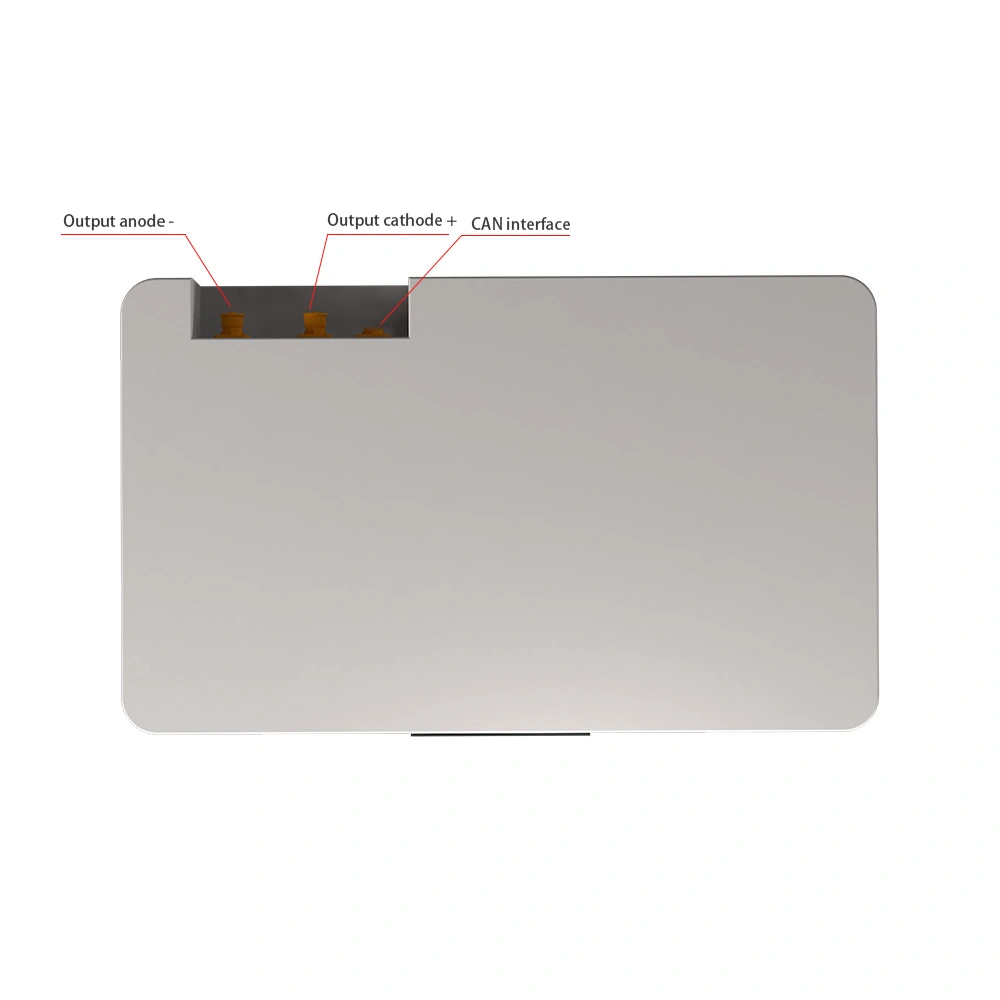

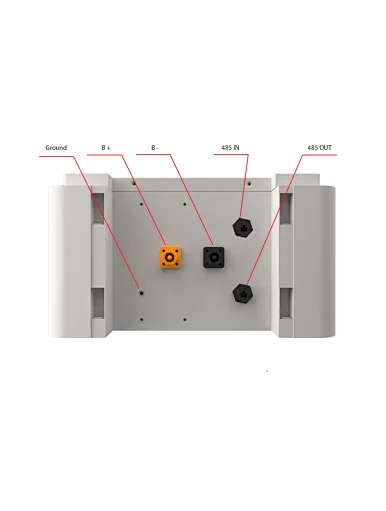

| Communication mode | CAN&RS485 |
High Voltage Energy Storage Solution - Suitable Inverters
| Brand | Protocol | Communication | Versions |
| Sofar | BMS CAN BUS Protocol | CAN | V1.001 |
| Goodwe | GoodWe HV BMS Protocol (CAN) | CAN | V1.4 |
| Growatt | Growatt High Voltage Battery BMS | CAN | V1.0 |
| Deye | CANBUS Protocol Of High Voltage System | CAN | V1.0 |
