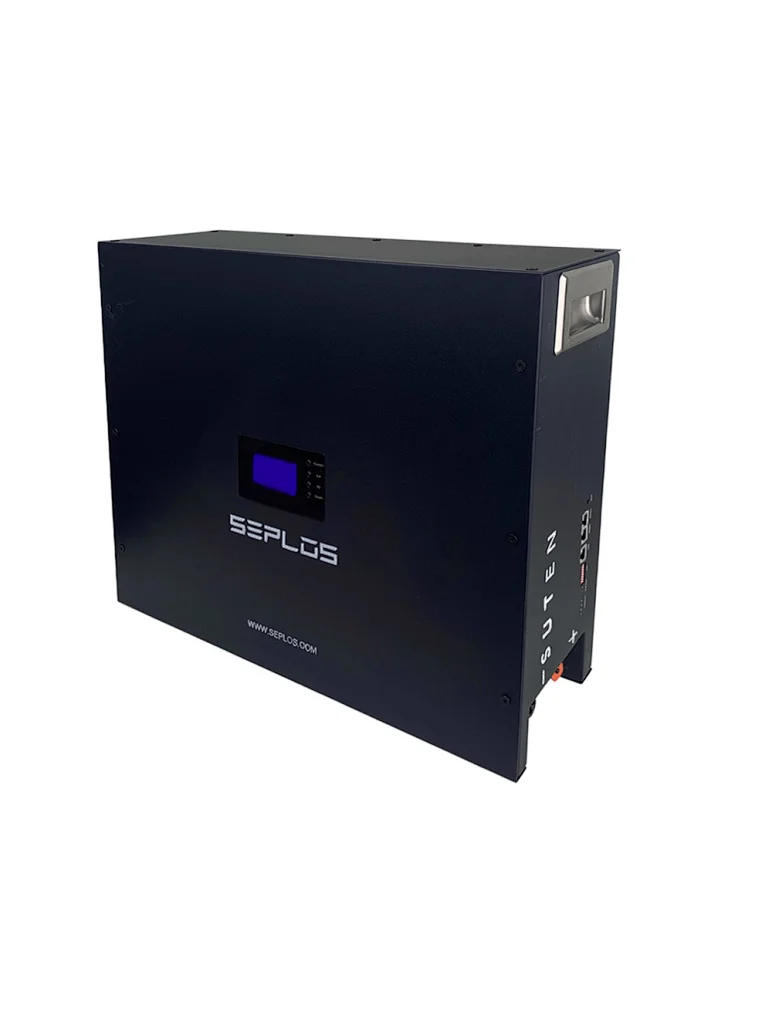

Seplos SUTEN-W 51.2V 100Ah LiFePO4 Battery Pack Household Wall Mounted Renewable Solar Battery
price
US $1690.00 / unit
SUTEN-W
1 unit
10000unit /
China
15-20Day
If you want wholesale price, please do not hesitate to contact us.
Quantity
Specification:
| Nominal Capacity | 100Ah @0.5C discharge current 25±2℃ |
| Nominal Voltage | 51.2V |
| Cell Dimension | 565*450*180mm |
| Rated Capacity (Ah) | 98-105Ah @0.5C discharge current 25±2℃ 41.6V - 57.6V |
| Nominal Power (Wh) | 5.12KWh |
| Configuration | 2*1P8S |
| Net Weight(single cell) | 56.3±5KG |
| Communication Interface | CAN,RS485 |
| Cycle life | ≥80% capacity state after 4800 cycles at 0.5C, 25℃, 100% DOD |
| IP level | IP 20 |
Features
- SUTEN-W comes with a LCD display for pack voltage, capacity and temperature monitoring.
- The battery cell used inside, is 16 pieces of 3.2V 100Ah aluminum case prismatic cell.
- Battery cell is made from lithium iron phosphate (LiFePO4) with safety performance and longer cycle life.
- Special designed plastic cell holder, holding 8 cells in series, and composes a battery module, and two modules in series, then connected with BMS, composes the wall-mounted type battery pack.
- BMS has over-discharge, over-charge, over-current, high and low temperature warning and protection functions.
- BMS monitors charge and discharge state, and balance current and voltage of each cell.
- BMS comes with upper computer system for real-time cell and pack voltage, current, temperature, and battery status monitoring and recording.
- Flexible configuration, max. 15 packs can be connected in parallel for expanding capacity and power with 8 DIP switches.
- Working temperature range is from -10℃~50℃ (Charging 0℃~50℃; discharging -10℃~50℃) with excellent discharge performance and cycle life.
- Pre-programmed with multi-protocols, and works with multi-brands of inverters.
This Seplos lithium phosphate battery pack designed by Seplos technology will suitable for multi-brands of inverters as below:
Applications
