Model No: HVS-R193P100-M

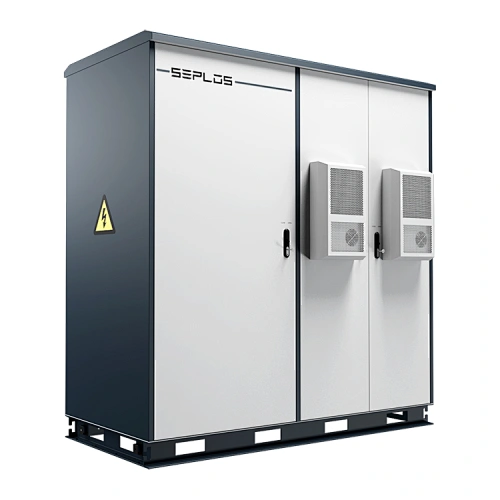

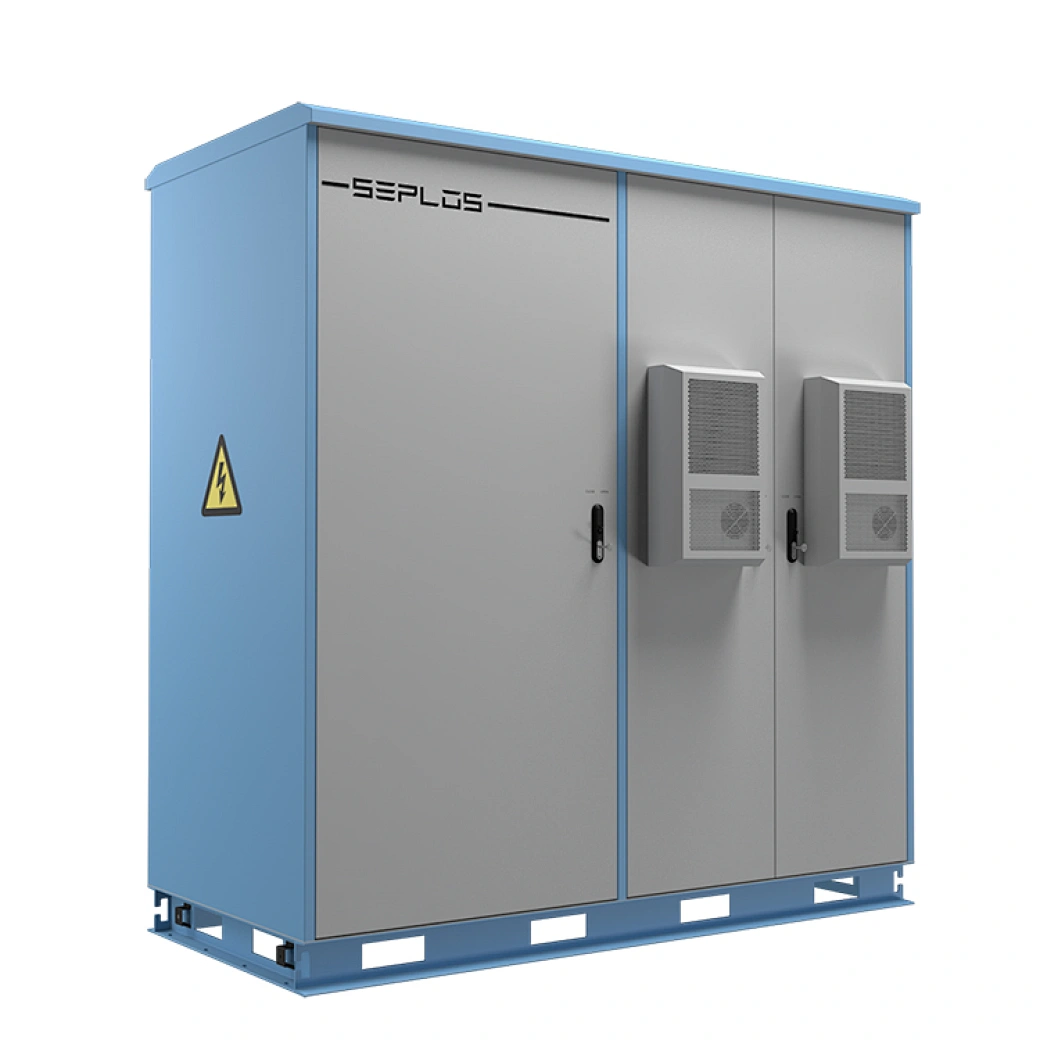

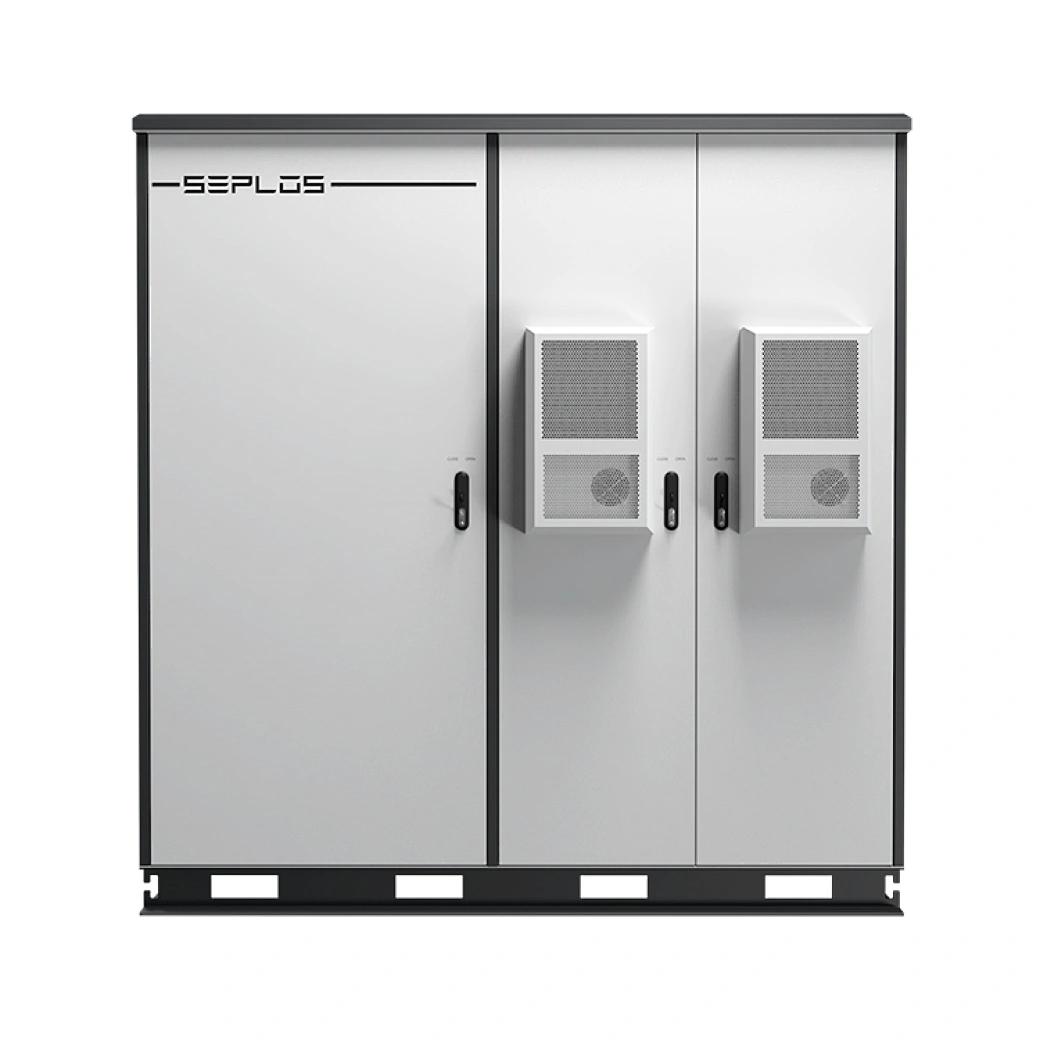

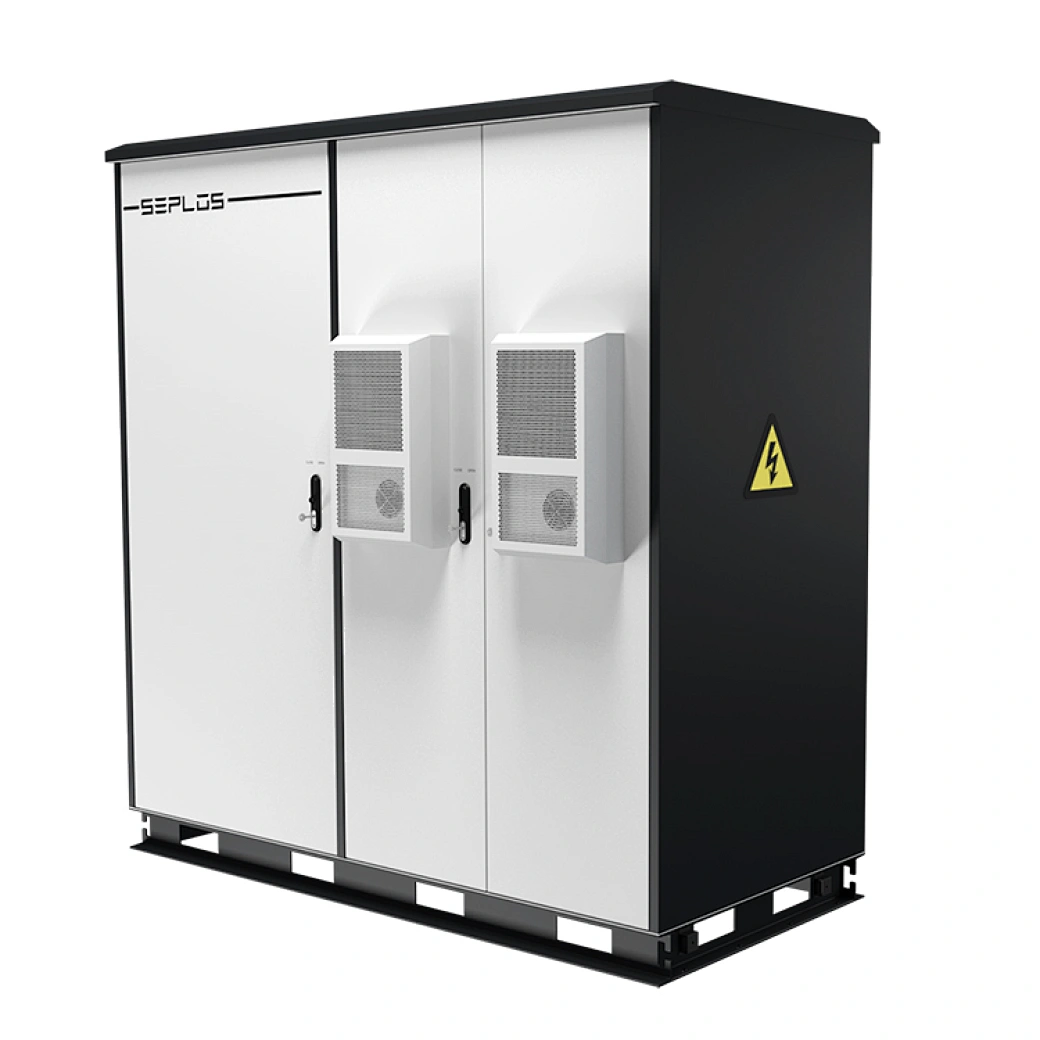

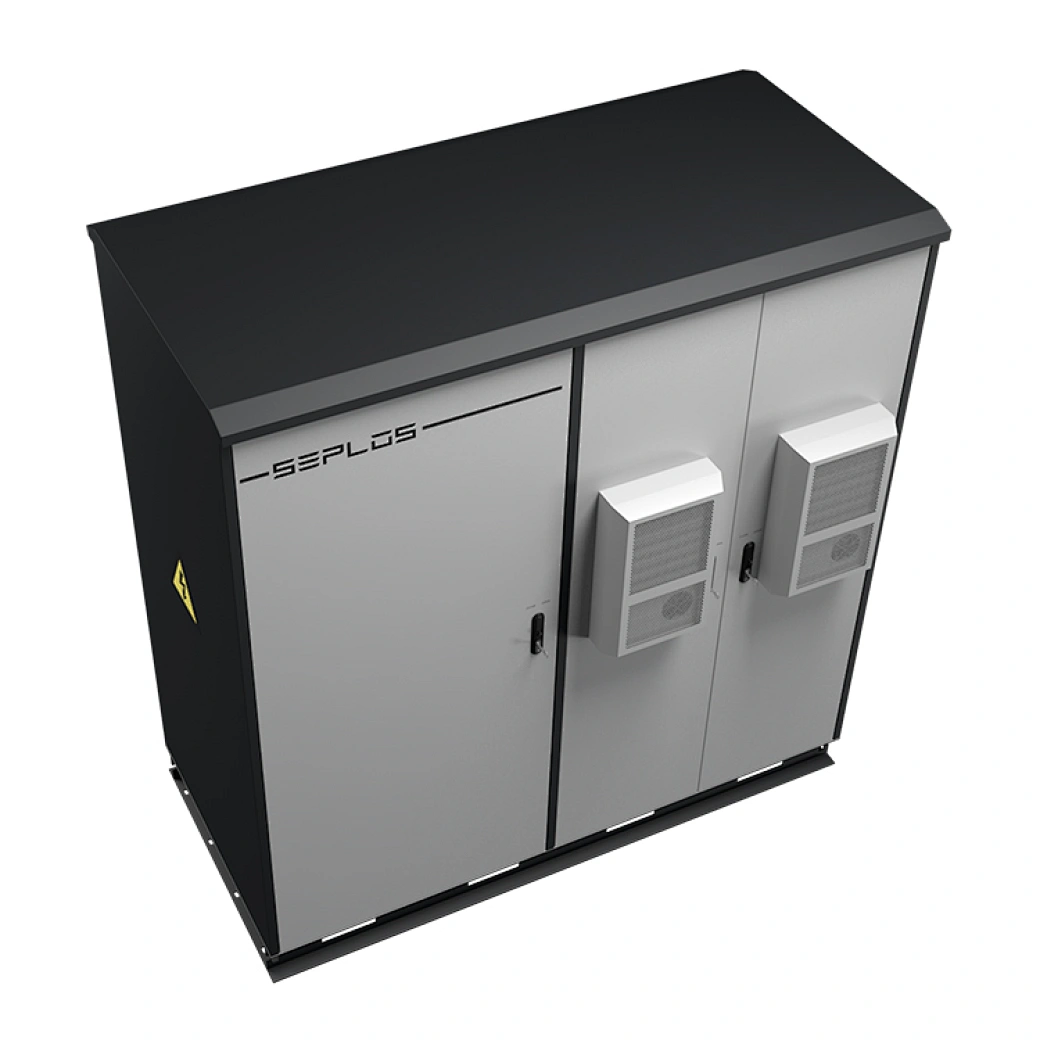

Seplos 193.5kWh Lithium Iron Phosphate LiFePO4 Distributed ESS Battery Cabinet Energy Storage Container
If you want wholesale price, please do not hesitate to contact us.
minimum order :
1 unit
Supply Ability :
10000unit / Month
Stock Time :
15-20Day
Country of Origin :
China
Quantity :
This is Seplos 193.5kWh Distributed ESS Cabinet Energy Storage Systems. Which can provide reliable power for several types of equipment and systems. Come with the function of peak shaving.
Parameter
| Item | Values |
Cell Parameter | |
Cell type | Lithium iron phosphate |
Single-cell cycle life | 3.2V280Ah EOL70% 8000 Time cycle life at (25℃ DOD90% 0.5P/0.5P) |
Configuration | 1P216S |
Rated voltage | 691.2V |
Voltage range | 540V-788.4V |
Nominal energy of the battery system | 193.5kWh |
| AC Parameter | |
Wiring mode | three-phase four-wire |
| AC power | 100kVA |
Load power | 110kVA |
Grid voltage | 380/400（-15%~15%）Vac |
Grid frequency | 50/60（-2.5~2.5）Hz |
Total current harmonic distortion rate | ≤3% |
Three-phase unbalanced support rate | 100% |
| PV Parameter | |
PV maximum voltage | 900Vdc |
PV MPPT voltage range | 520~800Vdc |
System parameter | |
Maximum conversion efficiency | ≥90% |
| Dimensions | W2250×D1050×H2360mm |
Weight | 2.5T |
Noise | ＜75dB |
IP lever | IP54 |
Ambient temperature | -20~60℃ |
Relative humidity | 0~95% |
Altitude | 3000M |
Communication | RS 485, Ethernet, CAN |
Protocol | Modbus TCP/RTU, IEC104 |
Optional function | STS module, EMS |
Certification
| Region | Certificate |
| General | EN 62109-1:2010 |
| General | EN 62109-2:2011（CE） |
| General | EN IEC 61000-6-2:2019 |
| General | ENIEC 61000-6-4:2019（EMC） |
| General | B5 EN 62109-1:2010 |
| Australia | A5/NZ5 4777.2:2020, Amd:1:2021 |
| Austria | OVE-Richtlinie R 25:2020 |
| France | DIN VDE 0126-1-1:2013( with nationaldeviation of France: DIN VDE 0126-1-1 6R 20191 |
| Germany | VDE-AR-N 4105:2018 |
| Netherland | EN 50549-1:2019+AC:2019-04 |
| South Africa | NRS 097-2-1:2017 Edition 2.1 |
| Thailand | PEA、MEA |
| United Kingdom | B5 EN 62109-2:2011 |
