Model No: PUSUNG-S

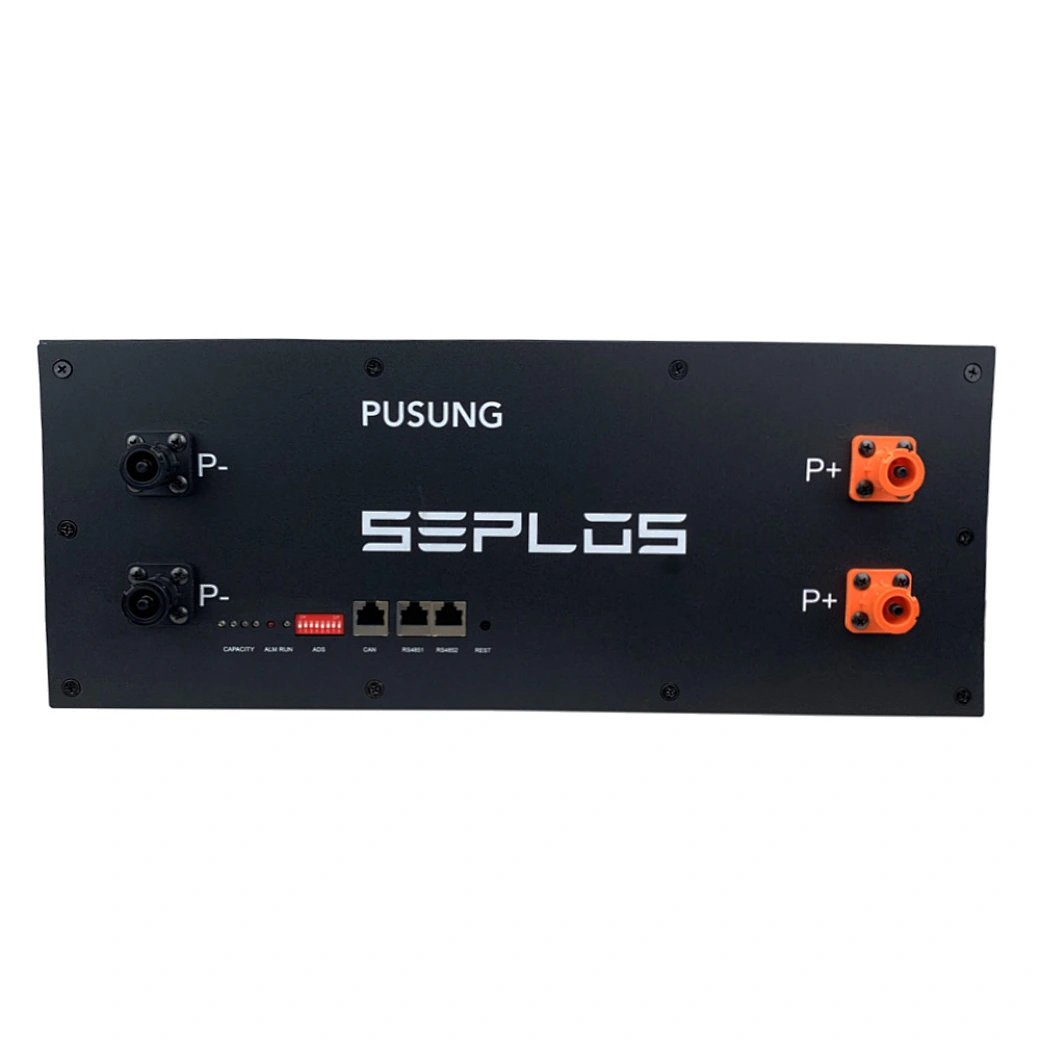

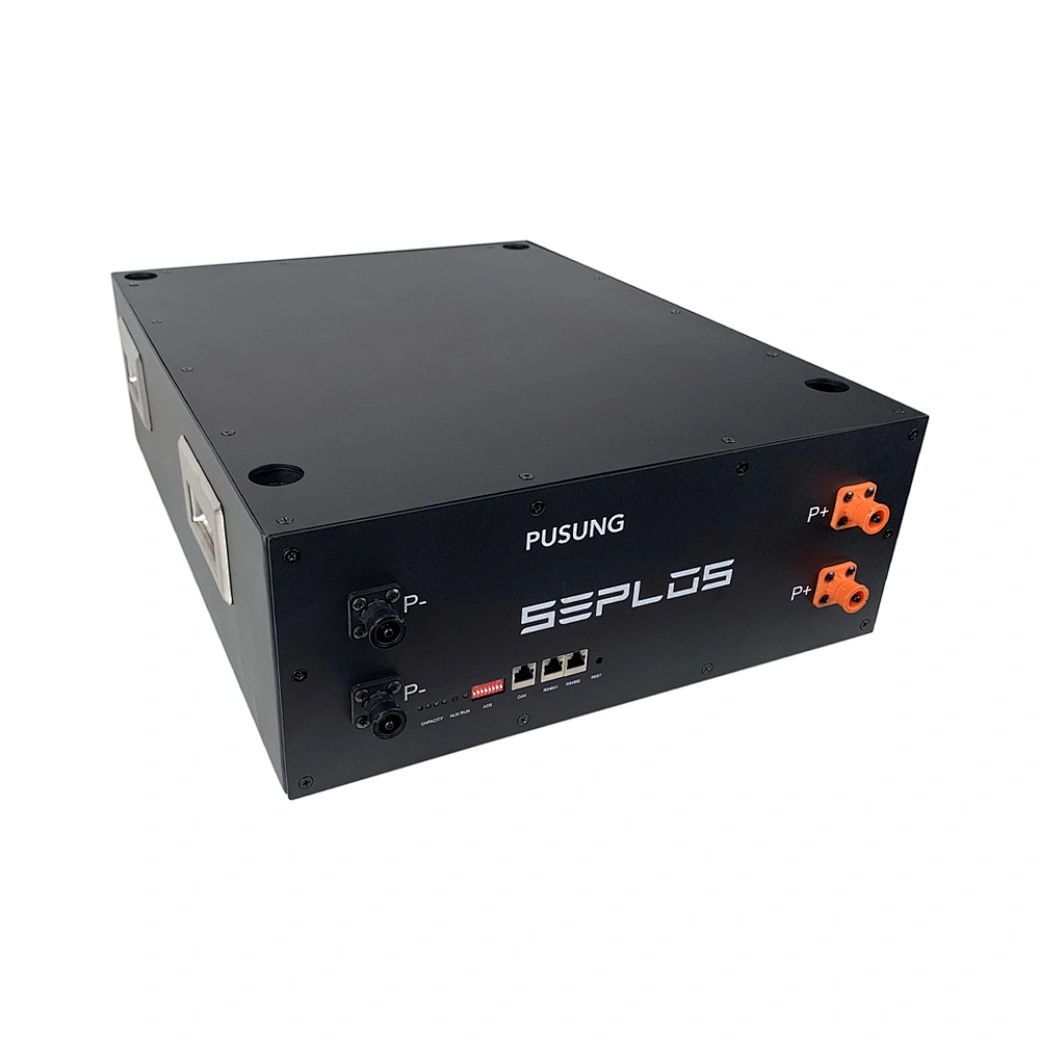

Seplos PUSUNG-S 51.2V 100Ah Lifepo4 Lithium Battery Pack 5.12KWh Home Energy Storage System
If you want wholesale price, please do not hesitate to contact us.
minimum order :
1 unit
Supply Ability :
10000unit / Month
Stock Time :
15-20Day
Country of Origin :
China
Quantity :
More video about the lithium phosphate battery pack for detail,please visit Our YouTube channel
Parameter
| Nominal Capacity | 100Ah @0.5C discharge current 25±2℃ |
| Nominal Voltage | 51.2V |
| Cell Dimension | 565*440*170mm |
| Continuously Charge/Discharge Current (A) | 100A @25±2℃ |
| Standard charge/discharge Current (A) | 50A @25±2℃ |
| Configuration | 2*1P8S |
| Net Weight(single cell) | 56.2±5KG |
| Standard Charge Current | 50A @25±2℃ |
| Cycle life | ≥80% capacity state after 4800 cycles at 0.5C, 25℃, 100% DOD |
| Standard Discharge Current | 50A @25℃ room temperature |
Features
- Battery cell is 3.2V 100Ah aluminum case prismatic cell.
- Battery cell is made from lithium iron phosphate (LiFePO4) with safety performance and longer cycle life.
- Special designed plastic cell holder, holding 8 cells in series composes a battery module, and two modules in series, then connected with BMS, composes a battery pack.
- BMS has over-discharge, over-charge, over-current, high and low temperature warning and protection functions.
- BMS monitors charge and discharge state, and balance current and voltage of each cell.
- BMS comes with upper computer system for real-time cell and pack voltage, current, temperature, and battery status monitoring and recording.
- Flexible configuration, max. 15 packs can be connected in parallel for expanding capacity and power with 8 DIP switches.
- Working temperature range is from -10℃~50℃ (Charging 0℃~50℃; discharging -10℃~50℃) with excellent discharge performance and cycle life.
- Pre-programmed with multi-protocols, SEPLOS PUSUNG works with multi-brands of inverters.
Low Voltage 48V Energy Storage Solution - Suitable Inverters
| Brand | Protocol | Communication | Versions |
| Pylontech | CAN-Bus-Protocol-PYLON | CAN | V1.3 |
| Goodwe | Goodwe Communication Protocol | CAN | V1.5 |
| Lolis | CAN Communication Protocol | CAN | V1.0 |
| Sofar | BMS CAN BUS Protocol | CAN | V1.0 |
| Growatt-SPF | Growatt BMS CAN-Bus-Protocol-Low-Voltage | CAN | V1.05 |
| Growatt-SPH | Growatt BMS Communication Protocol Of Growatt Low Voltage Battery | CAN | V1.01 |
| SMA | FSS-ConnectingBat-TI-EN-20W | CAN | V2.0 |
| Victron | Can-Bus_Bms_Protocol | CAN | V1.0 |
| LUXPOWER | Luxpowertek Battery CAN Protocol | CAN | V1.0 |
| Studer | Technical Specification Studer BMS Protocol | CAN | V1.03 |
| TBB | TBB BMS CAN Communication V1.02 | CAN | V1.02 |
| Deye | CAN-Bus-Protocol-PYLON-V1.3 | CAN | V1.0 |
| Sorocec | 2_CAN Protocol 1.0 | CAN | V1.0 |
| MEGAREVO | Hybrid Inverter_5K_BMS Protocol V1.01 | CAN | V1.01 |
| Amensolar | CAN-Bus-Protocol-PYLON | CAN | V1.0 |
| Sacolar | Growatt BMS CAN-Bus-Protocol-Low-Voltage | CAN | V1.05 |
| MUST | PV1800F-CAN Communication Protocol | CAN | V1.04.04 |
| AFORE | Luxpowertek Battery CAN Protocol | CAN | V1.0 |
| Pylontech | RS485-Protocol-Pylon-Low-Voltage | 485 | V3.5 |
| Voltronic Power | Voltronic Inverter And BMS 485 Communication Protocol | 485 | V1.0 |
| SRNE | PACE BMS Modbus Protocol For RS485 | 485 | V1.3 |
| Deye | RS485-Protocol-Pylon-Low-Voltage | 485 | V1.0 |
| Growatt-SPF | SPF BMS RS485 | 485 | V2.01 |
