100ah lithium battery

Seplos 104-S Stackable 48V 104Ah Lithium Iron Phosphate 5KWH LiFePO4 51.2V Energy Storage Battery Pack

POLO-S-104
If you want wholesale price, please do not hesitate to contact us.
minimum order
1 unit
Supply Ability
10000unit / Month
Country of Origin
China
Stock Time
15-20Day
Quantity:
Contact Now
add to cart
Description
Seplos Polo 104 S has a 5Kwh power supply for energy storage and is equipped with a smart BMS to offer comprehensive protection. Moreover, the Aerosol extinguishing is settled as a final protection.

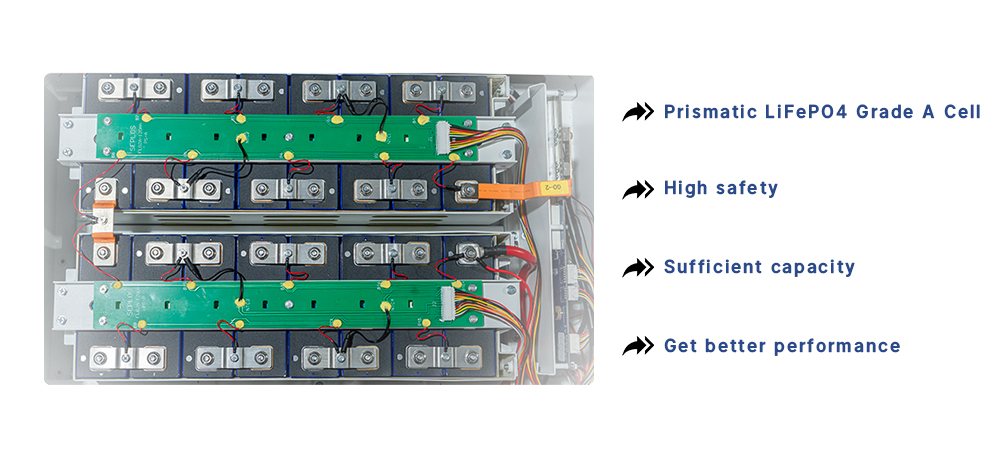

This battery solution is assembled with the 3.2V 104Ah lithium iron phosphate cell in 1P16S configuration and features a master control unit with an LCD screen, providing convenient access to critical battery information.
Features
  • Automotive-grade lithium battery
  • Safer use
  • Plug-and-play compatibility
  • Passive balancing
  • Scalable energy storage
Technical specifications
Nominal Voltage:48V /51.2V
Rated capacity: 105Ah/5kwh
BMS: Smart 16S 100A (Max 32pcs In Parallel)
Communication protocol: CAN / RS485*2
Power: 5324Wh
Cycle Life: >4800 Cycles
Max. Charging Current: 100A
Max. Discharge Current: 100A
Waterproof class. : IP20
Battery Size:(L*W*H)630*470*270mm
Weight: 50kg

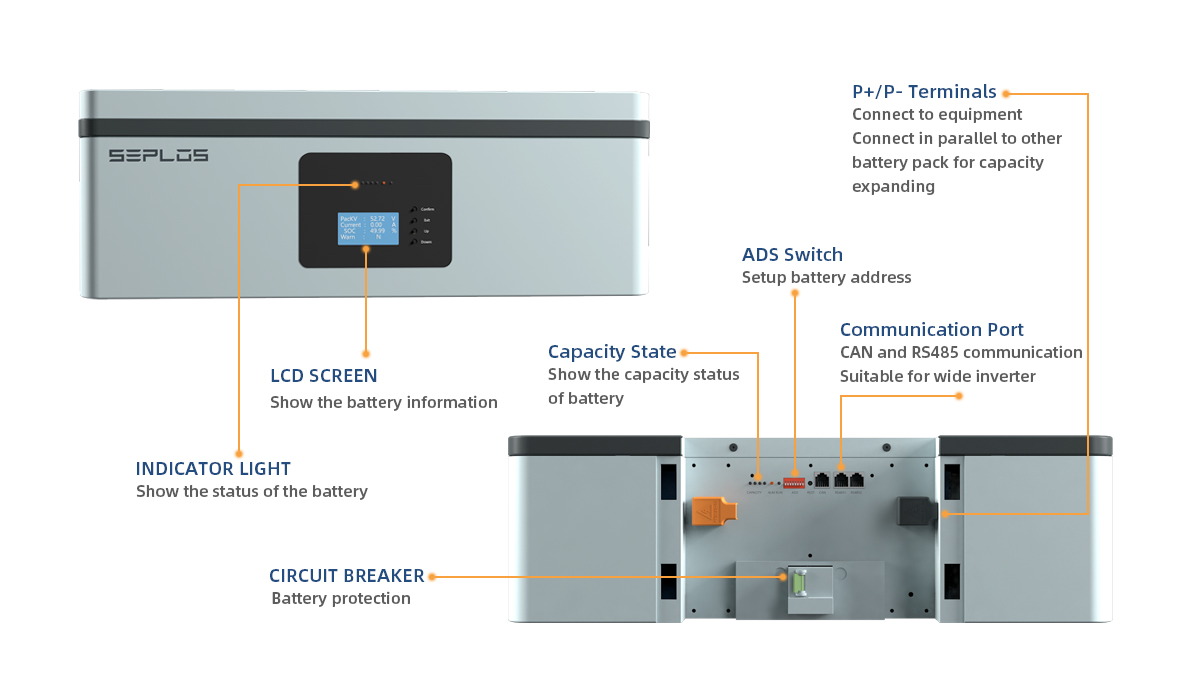

Display: LCD Screen
Built-in battery management system.
CAN/RS485*2 inverter communication.
Parameter
ItemSpecifications
Rated energy(kWh)
5.32KWh
Configuration1P16S
Nominal Voltage(V)51.2V
Nominal Capacity(Ah)104Ah
Working Voltage(V)42V~58.4V
Rated charge/discharge
Current(A)		52A @25±2℃
Maximum charge/discharge current104A@25±2℃
Working Temperature0～40℃(Charge) -20～40℃(Discharge)
Weight(Kg)50Kg±3kg
Dimension(mm)630×470×270mm
Cycle life4800 cycles @25℃ 50A charge and discharge current 70% standard capacity 80% DOD
Communication modeCAN&RS485

Item Detail

household battery storage
household battery storage
household battery storage
 household battery storage

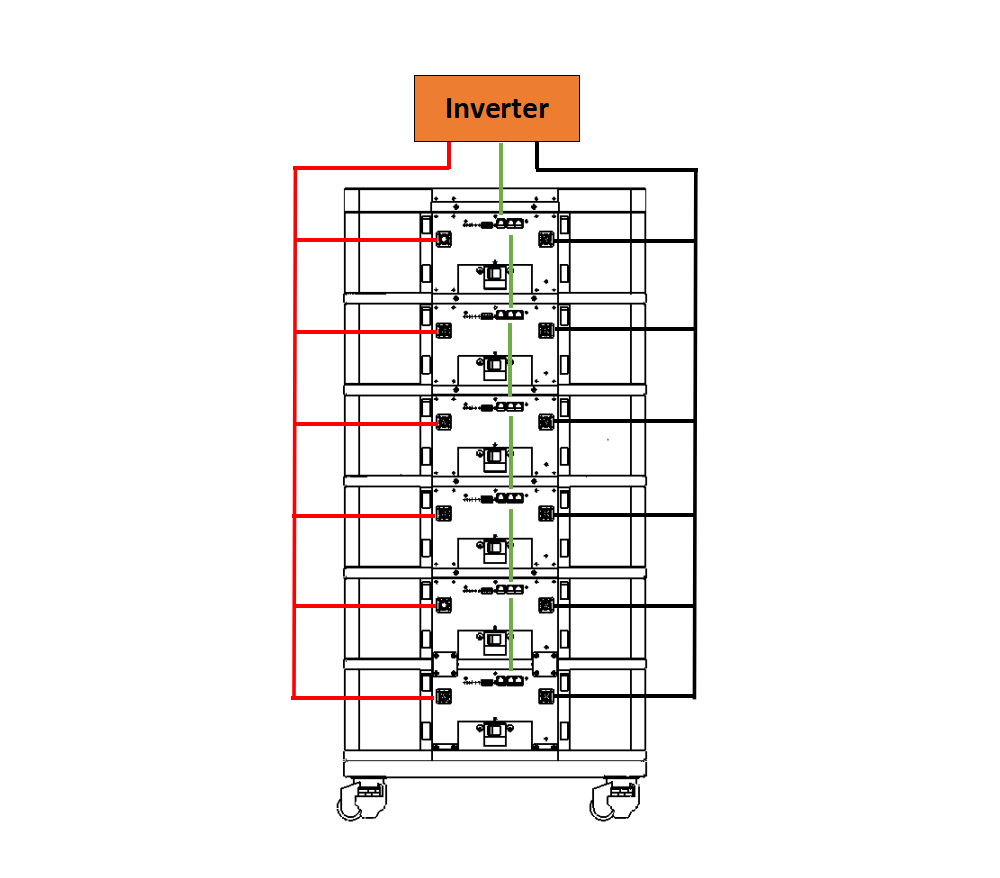

Low Voltage 48V Energy Storage Solution - Suitable Inverters

BrandProtocolCommunicationVersions
PylontechCAN-Bus-Protocol-PYLONCANV1.3
GoodweGoodwe Communication ProtocolCANV1.5
LolisCAN Communication ProtocolCANV1.0
SofarBMS CAN BUS ProtocolCANV1.0
SMAFSS-ConnectingBat-TI-EN-20WCANV2.0
VictronCan-Bus_Bms_ProtocolCANV1.0
LUXPOWERLuxpowertek Battery CAN ProtocolCANV1.0
StuderTechnical Specification Studer BMS ProtocolCANV1.03
TBBTBB BMS CAN Communication V1.02CANV1.02
DeyeCAN-Bus-Protocol-PYLON-V1.3CANV1.0
Sorocec2_CAN Protocol 1.0CANV1.0
MEGAREVOHybrid Inverter_5K_BMS Protocol V1.01CANV1.01
AmensolarCAN-Bus-Protocol-PYLONCANV1.0
MUSTPV1800F-CAN Communication ProtocolCANV1.04.04
AFORELuxpowertek Battery CAN ProtocolCANV1.0
PylontechRS485-Protocol-Pylon-Low-Voltage485V3.5
Voltronic PowerVoltronic Inverter And BMS 485 Communication Protocol485V1.0
SRNEPACE BMS Modbus Protocol For RS485485V1.3
DeyeRS485-Protocol-Pylon-Low-Voltage485V1.0
