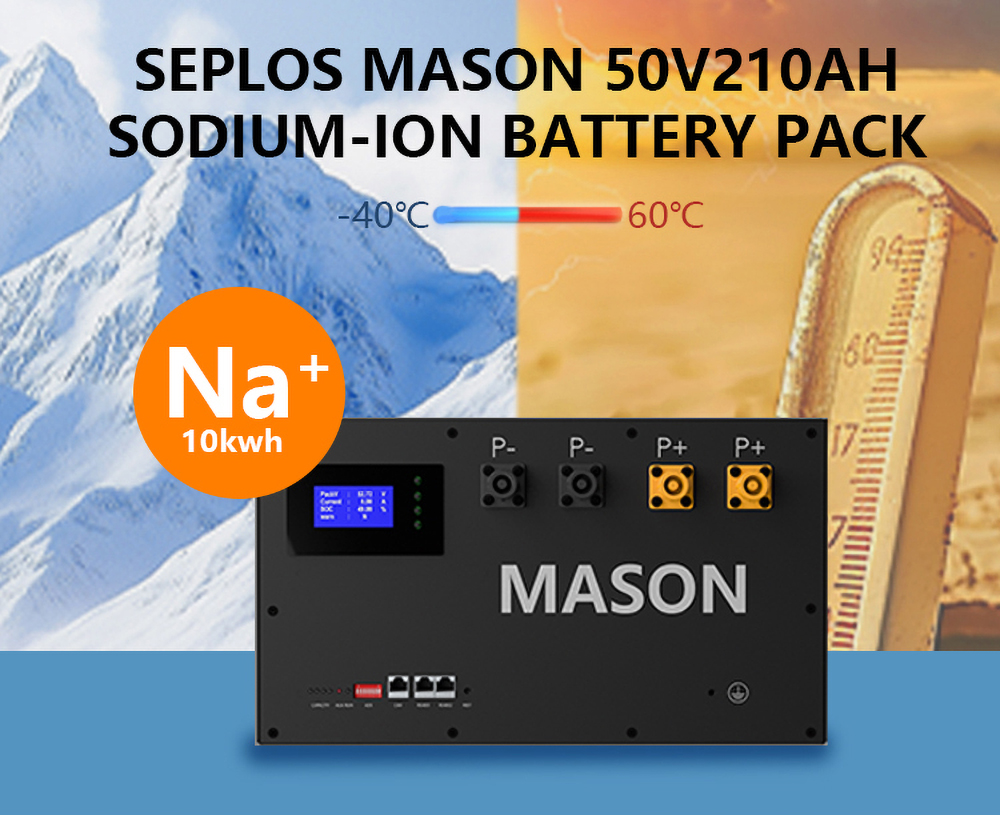

Seplos 48V 210Ah 10Kwh Sodium-Ion Battery Pack Energy Storage SIB Sodium Batteries For Household Off Grid Systems
Sodium batteries are inherently safe and do not readily explode or short-circuit which can withstand extreme hot and cold temperatures, eliminating the risk of overheating or thermal runaway that can lead to battery failure, explosions, or fires. This inherent safety makes sodium battery packs a reliable and stable power source for energy storage projects. They are well-suited for various applications, including residential and commercial renewable energy storage, grid storage, and backup power for data and telecommunications companies.
- Stacked style design
- Comprehensive protection:
- Stable and long-lasting:
- The battery has a high capacity:
- Compatible with most inverter brands
Nominal Voltage:49.6V
Rated capacity: 210Ah/10kwh
BMS: Smart 16S 200A (Max 32pcs In Parallel)
Communication protocol: CAN / RS485*2
Cycle Life: >4000 Cycles
Max. Charging Current:200A
Max. Discharge Current:200A
Waterproof class. : IP20
Battery Size:(L*W*H)750*439*252mm
Weight: 100kg
Display: LCD Screen
Built-in battery management system.
CAN/RS485*2 inverter communication.

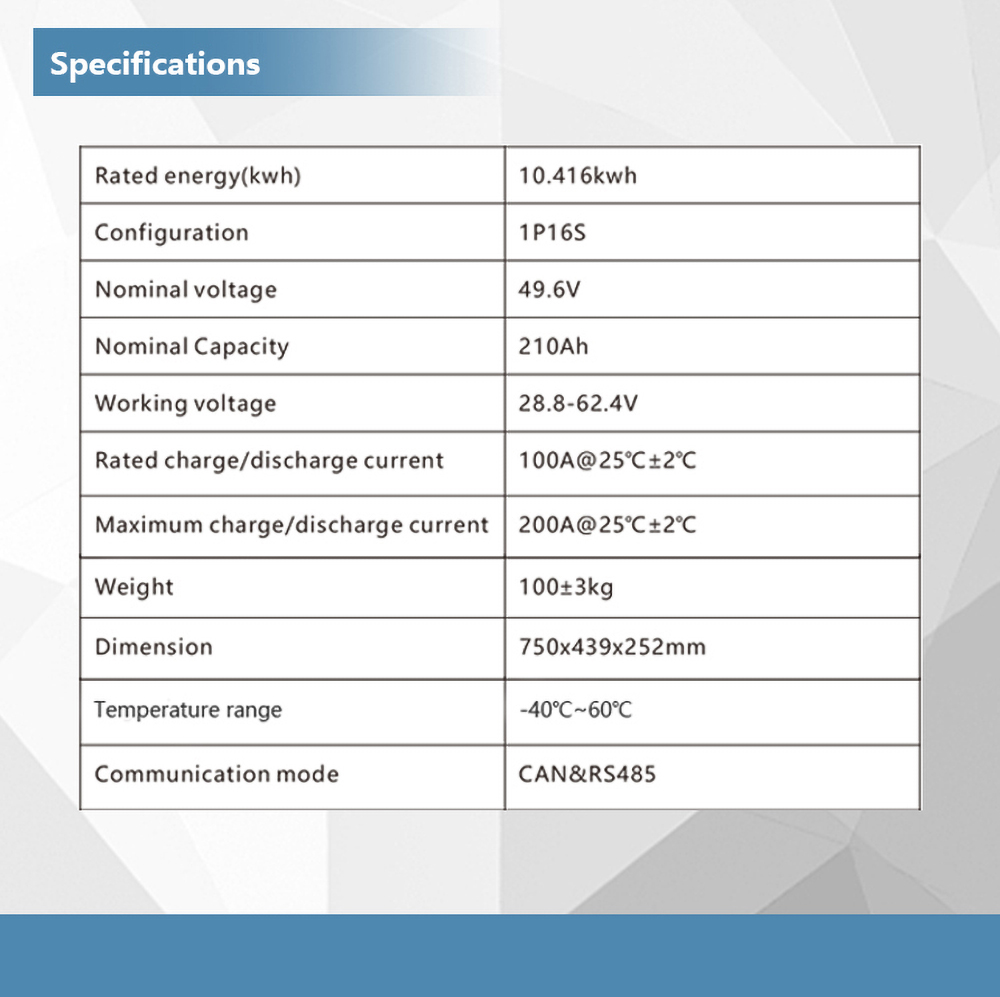

| Item | Specifications |
|---|---|
| Rated energy(kWh) | 10.416KWh |
| Configuration | 1P16S |
| Nominal Voltage(V) | 49.6V |
| Working Voltage(V) | 28.8V~62.4V |
| Nominal Capacity(Ah) | 210Ah |
| Rated charge/discharge Current(A) | 100A @25± 2℃ |
| Maximum charging current | 200A@25± 2℃ |
| Maximum discharge current | 200A @25± 2℃ |
| Working Temperature | 0-40℃(Charge) -20-40℃(Discharge) |
| Humidity(%) | 5~85% |
| Altitude Limited(m) | 0-3000m |
| Weight(Kg) | 100Kg± 3kg |
| Dimension(mm) | 750×439×252mm |
| Storage temperature and humidity | -10℃~35℃ (Within one month of storage) 25± 2℃(Within three months of storage)65%±20% RH |
| Cycle life | 4000 cycles @25℃ 100ACharge and discharge current 80%DOD EOL 70% |
| IP grade | IP20 |
| Communication mode | CAN&RS485 |
| Brand | Protocol | Communication | Versions |
| Pylontech | CAN-Bus-Protocol-PYLON | CAN | V1.3 |
| Goodwe | Goodwe Communication Protocol | CAN | V1.5 |
| Lolis | CAN Communication Protocol | CAN | V1.0 |
| Sofar | BMS CAN BUS Protocol | CAN | V1.0 |
| SMA | FSS-ConnectingBat-TI-EN-20W | CAN | V2.0 |
| Victron | Can-Bus_Bms_Protocol | CAN | V1.0 |
| LUXPOWER | Luxpowertek Battery CAN Protocol | CAN | V1.0 |
| Studer | Technical Specification Studer BMS Protocol | CAN | V1.03 |
| TBB | TBB BMS CAN Communication V1.02 | CAN | V1.02 |
| Deye | CAN-Bus-Protocol-PYLON-V1.3 | CAN | V1.0 |
| Sorocec | 2_CAN Protocol 1.0 | CAN | V1.0 |
| MEGAREVO | Hybrid Inverter_5K_BMS Protocol V1.01 | CAN | V1.01 |
| Amensolar | CAN-Bus-Protocol-PYLON | CAN | V1.0 |
| MUST | PV1800F-CAN Communication Protocol | CAN | V1.04.04 |
| AFORE | Luxpowertek Battery CAN Protocol | CAN | V1.0 |
| Pylontech | RS485-Protocol-Pylon-Low-Voltage | 485 | V3.5 |
| Voltronic Power | Voltronic Inverter And BMS 485 Communication Protocol | 485 | V1.0 |
| SRNE | PACE BMS Modbus Protocol For RS485 | 485 | V1.3 |
| Deye | RS485-Protocol-Pylon-Low-Voltage | 485 | V1.0 |
