Seplos UltraPower 100 103kWh High-Voltage Commercial BESS

690V Integrated Energy Storage System with 50kW Hybrid Inverter, EMS and Smart Thermal Management

103kWh high-voltage commercial battery energy storage system with a 50kW hybrid inverter, EMS, BMS, air-cooled battery modules and intelligent remote monitoring for peak shaving, microgrids and off-grid backup.
103kWh

Energy Capacity

50kW

Rated Output Power

6000

Cycle Life

IP54

Protection Rating

PRODUCT OVERVIEW

Integrated 103kWh High-Voltage Energy Storage for Commercial and Microgrid Applications

The Seplos UltraPower 100 is a 103kWh high-voltage commercial battery energy storage system designed for peak shaving, renewable energy integration, microgrids and reliable off-grid backup.

The system integrates nine air-cooled battery packs with a 50kW hybrid inverter, EMS, BMS, smart temperature control and fire protection in a compact all-in-one cabinet.

With a nominal battery voltage of 691.2Vdc, cloud-based monitoring and multi-mode operation, the UltraPower 100 supports grid-connected, off-grid and VPP applications while helping commercial users improve energy resilience and optimize electricity costs.

Commercial & Industrial
Solar Energy Storage
Backup Power
Microgrid Integration
103
kWh

Integrated Energy Capacity

103kWh Integrated Commercial Storage

A fully integrated 103kWh high-voltage battery system combines storage, inverter, EMS and safety management in one cabinet for commercial and distributed energy applications.

50kW Hybrid Power Conversion

The integrated 50kW hybrid inverter supports renewable energy integration, grid-connected operation and off-grid backup within a unified energy storage platform.

Intelligent Remote Energy Management

Cloud-based monitoring, EMS control and remote operation support real-time system supervision, early warning and smarter lifecycle energy management.
ENGINEERING EXCELLENCE

Engineered for Safety, Intelligence and Reliable Performance

Seplos energy storage systems combine advanced battery protection, intelligent monitoring and practical system architecture to support stable operation, flexible integration and long-term project performance.

Seplos UltraPower 100 103kWh commercial battery energy storage system
9 Air-Cooled Battery Packs
Integrated 50kW Hybrid Inverter
EMS + BMS Smart Control
Integrated Fire Protection
Key engineering systems shown for reference
01

All-in-One High-Voltage Architecture

Battery storage, hybrid inverter, EMS, BMS and safety systems are integrated into one pre-assembled cabinet, simplifying deployment and system commissioning.
02

Intelligent Thermal Management

The intelligent air-cooling system maintains internal temperature consistency within ≤5°C, helping improve battery operating stability and lifecycle performance.
03

Multi-Layer Safety Protection

Integrated sensing, fire detection, suppression, combustible gas monitoring, smoke extraction and explosion venting provide multiple layers of system-level safety protection.
04

Flexible Multi-Mode Operation

Supports grid-connected, off-grid, microgrid and VPP operating modes, allowing the system to adapt to different commercial energy strategies and backup requirements.
TECHNICAL SPECIFICATIONS

Technical Data for System Evaluation

Review the key electrical, battery, communication and environmental specifications required for preliminary system evaluation and project planning.

Seplos UltraPower 100 103kWh High-Voltage Commercial BESS

Project-Ready System Parameters

Use these values for preliminary product comparison, inverter matching and energy storage project assessment. Final configurations should be confirmed with the Seplos engineering team.

103kWh
Rated Energy
LiFePO4
Cell Chemistry
RS485 / Ethernet / 4G
Communication
ParameterSpecification
ModelUltraPower 100
Nominal Energy103 kWh
Nominal Battery Voltage691.2 Vdc
Battery Voltage Range604.8–777.6 Vdc
Rated Charge / Discharge Current75 A
Maximum Charge / Discharge Current90 A
Battery Pack Quantity9 Air-Cooled Packs
PV Maximum Input Power50 kW
PV Starting Voltage200 V
PV Maximum Voltage1000 Vdc
PV Rated Voltage630 Vdc
MPPT Operating Voltage Range200–850 Vdc
MPPT Quantity4
Single MPPT Input Channels2
Maximum Input Current30A × 4
Maximum Short-Circuit Current40A × 4
Rated AC Output Power50 kW
Rated AC Input Power50 kW
Maximum AC Output Current75 A
Rated AC Voltage3L/N/PE; 400 V
Grid Frequency50 / 60 Hz
Off-Grid Switching Time<20 ms
Voltage THD<3% @ Rated Power & Linear Load
CommunicationRS485 / Ethernet / 4G
Operating Temperature-20°C to 50°C
Storage Temperature-20°C to 45°C
Relative Humidity5–95% RH, No Condensation
AltitudeUp to 3000 m
Protection RatingIP54
Overall Dimensions960 × 1650 × 2245 mm
Net Weight1480 kg
Gross Packaged Weight1570 kg
Package Size1030 × 1720 × 2400 mm
Battery CertificationIEC 62619 / IEC 61000 / UN 38.3
Inverter CertificationIEC 61000 / IEC 62477 / IEC 62109 / EN 50549-1

Technical specifications may vary by system configuration, battery module selection and project requirements. Contact Seplos for final engineering confirmation before procurement or system integration.

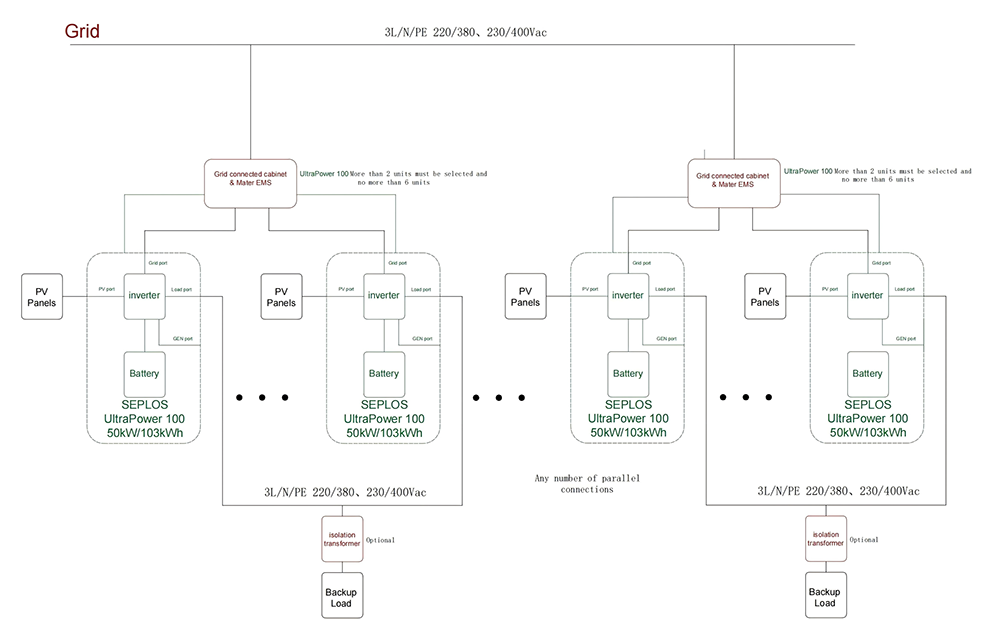

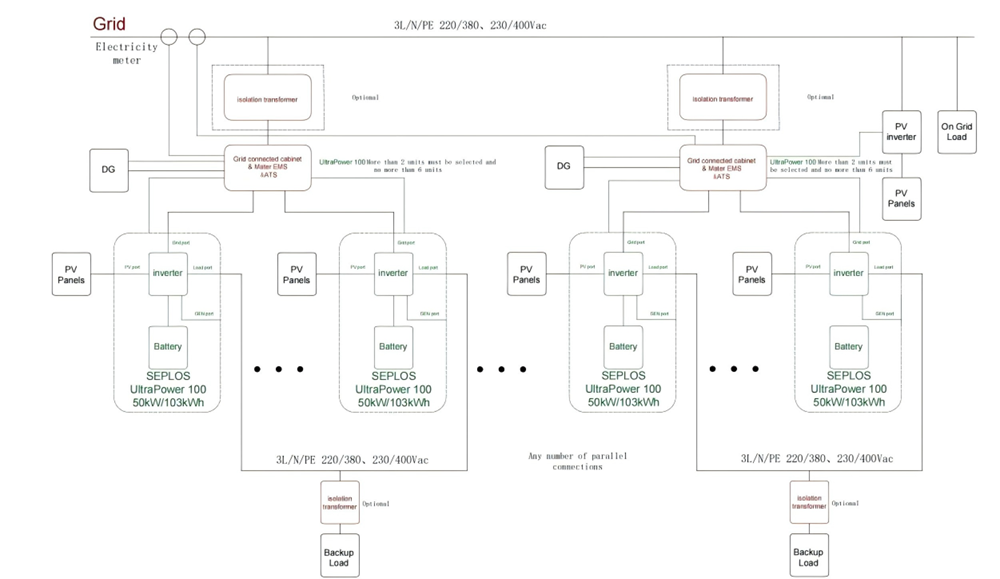

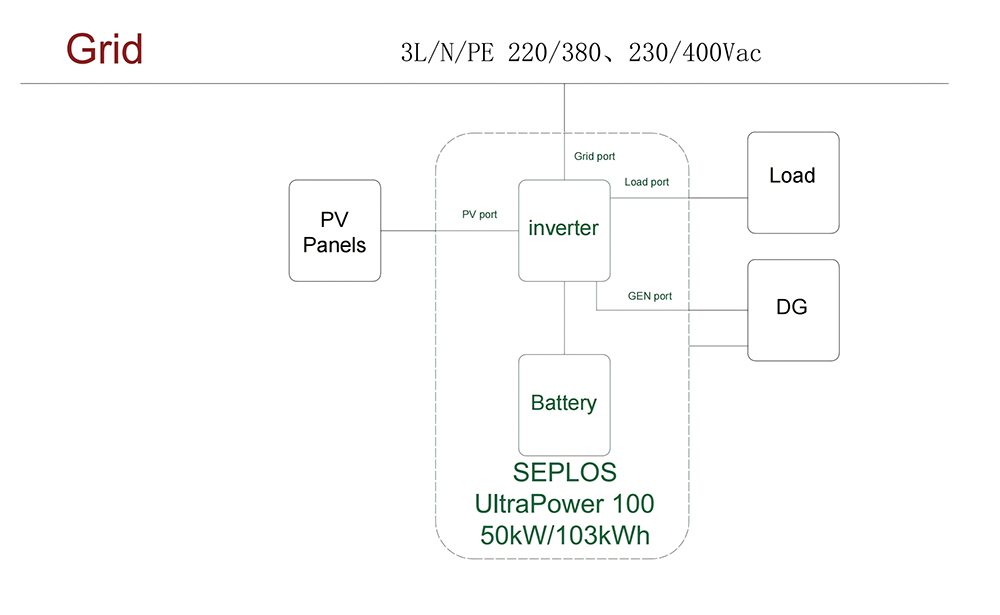

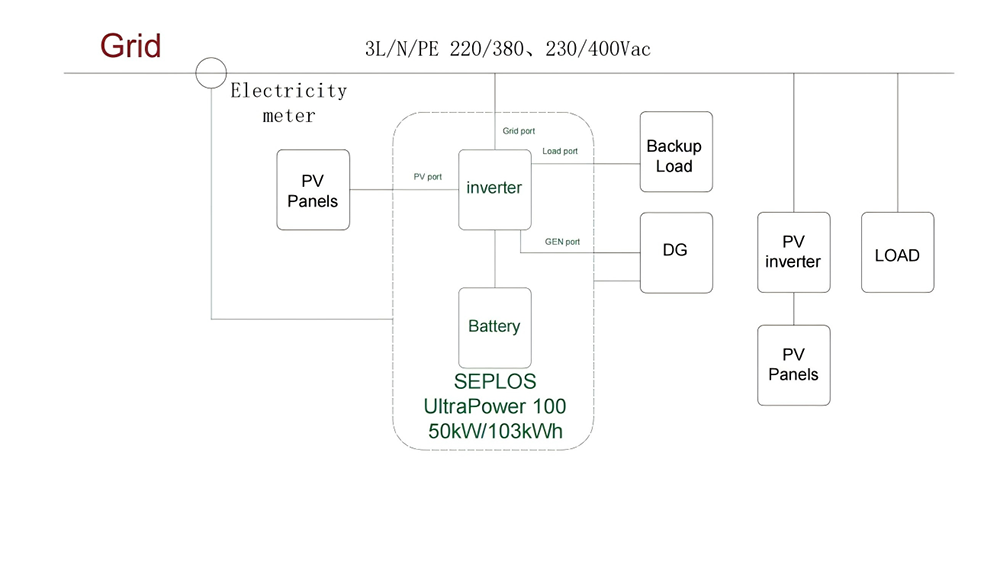

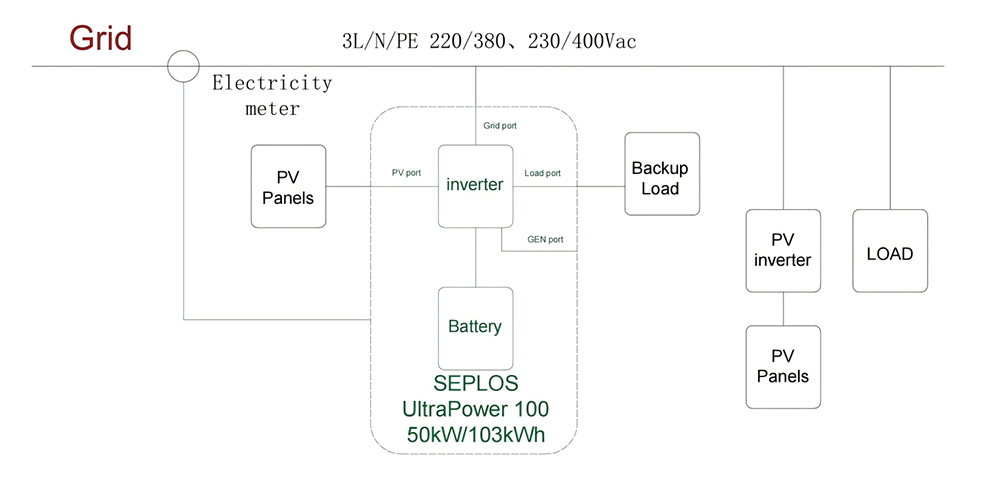

SYSTEM ARCHITECTURE

How Seplos UltraPower 100 103kWh High-Voltage Commercial BESS Manages Energy Across the System

A connected energy storage architecture coordinates solar generation, grid power, battery charging and critical loads to support more flexible and resilient energy use.

Solar PV Generation

Renewable energy is supplied to the site and excess generation can be directed to battery charging.

Utility Grid

Grid electricity supports the site when required and can be managed according to project strategy.

Seplos UltraPower 100 103kWh commercial battery energy storage system

Seplos UltraPower 100 103kWh High-Voltage Commercial BESS BESS

Smart BMS and system controls coordinate charging, discharging, protection and energy dispatch.

Intelligent Energy Control

Commercial Loads

Stored energy can help reduce peak demand, shift energy use and improve renewable energy utilization.

Critical Backup Loads

Selected equipment can receive stored power during grid interruptions, subject to system configuration.

Peak Shaving

Reduce high-demand grid consumption

Solar Self-Consumption

Store excess solar energy for later use

Backup Power

Power essential loads during outages

STEP 01

Energy Input

Solar PV and grid sources supply power according to site conditions.

STEP 02

Smart Coordination

BMS and control logic monitor system status and available energy.

STEP 03

Storage & Dispatch

Energy is stored or released based on demand and project strategy.

STEP 04

Load Support

Commercial and critical loads receive power through the configured system.

RECOMMENDED APPLICATIONS

From lowering energy costs to ensuring power continuity, storage helps your business get more from every kilowatt-hour.

Peak Shaving

Reduce peak demand and demand charges with stored energy. Ideal for factories, data centers, and large commercial facilities

.

PV Self-Consumption

Store excess solar power and use it when your facility needs it most. Ideal for factories, warehouses, and commercial buildings.

Energy Arbitrage

Charge when rates are low and discharge when prices rise to reduce energy costs. Ideal for businesses with time-of-use tariffs.

Resilience

Keep critical operations running during grid outages with reliable backup power. Ideal for factories, data centers, cold storage, and retail.

SYSTEM INTEGRATION

System Compatibility & Project Integration

System voltage, communication protocol, inverter settings and site requirements should be confirmed before final configuration and ordering.

ENGINEERING REVIEW

Confirm Compatibility Before Final System Configuration

The final energy storage configuration depends on inverter compatibility, system voltage, communication protocol, load profile and the required backup duration.

COMMUNICATION

CAN / RS485

Communication settings should match the selected inverter, EMS and project control requirements.

INVERTER MATCHING

Confirm Before Ordering

Inverter brand, model, voltage range and protocol compatibility should be reviewed before purchase.

ENERGY MANAGEMENT

EMS Integration Supported

The system can be integrated into a project energy management strategy subject to final configuration.

PROJECT CONFIGURATION

Engineering Review Available

Seplos can review project requirements and help confirm a suitable battery system configuration.

PROJECT CONSULTATION

Need Help Configuring Your Energy Storage System?

Share your required capacity, inverter model, application and project location. The Seplos engineering team can help review compatibility and recommend a suitable system configuration.

Request a System Configuration
Download Product Datasheet
PROJECT INFORMATION

Prepare These Details for a Faster Recommendation

Required Energy Capacity
Inverter Brand & Model
Application & Load Requirements
Installation Location
Expected Backup Duration

Engineering review and final compatibility confirmation are recommended before ordering.
