Seplos 48V 230Ah LiFePO4 Lithium Phosphate Battery Pack DIY Kits Set Case Assemble Box Without Cells
price
US $500.00 / set
MASON-48230-DIY-Without Cells
1 set
1000set / Month
China
15-20Day
If you want wholesale price, please do not hesitate to contact us.
Quantity
The battery pack DIY kits bundle including all the parts and materials to assemble a 51.2V 230Ah battery pack for home energy storage and solar battery storage.
The packing list is as follows, please check before formal assemble.

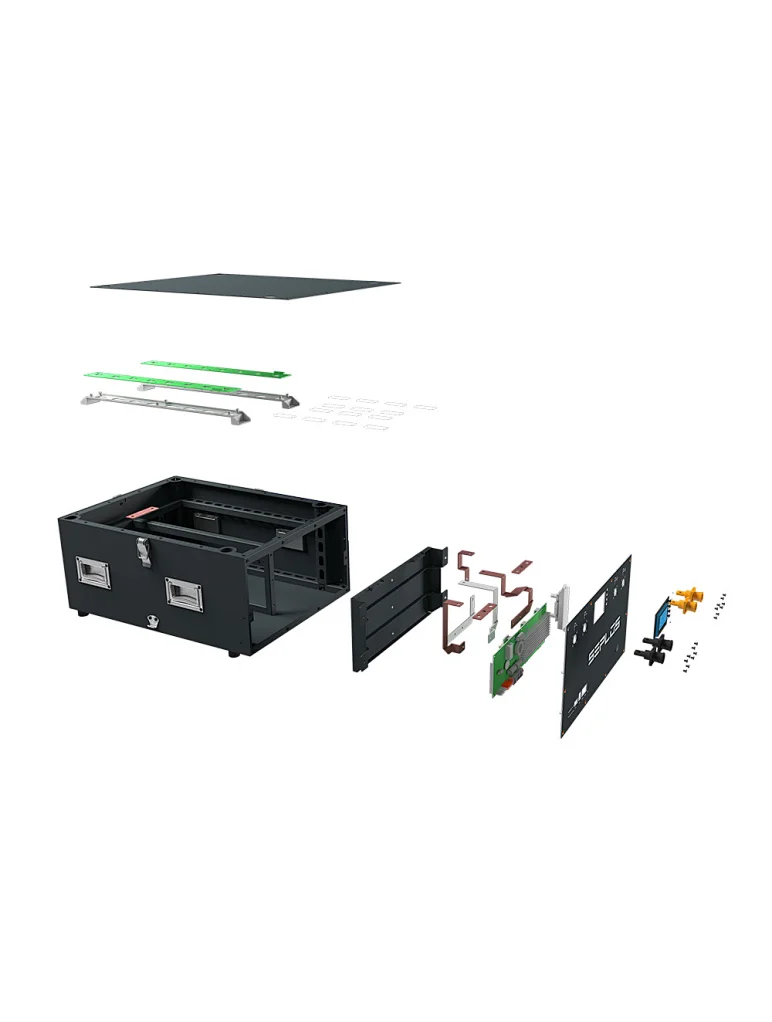

Package List:
- 1 * Battery Case (Bottom case, Front Panel, Top Bracket, Front Bracket, Top cover)
- 1 * 48V 200A 16S Seplos BMS
- 1 * 58V 400A Fuse
- 4 * Handle
- 2 * PCB Board for BMS and Cell Connection
- 3 * Upper and Lower Latch lock
- 1 * LCD Screen
- 1 * LCD Screen Sticker
- 4 * Button Cap
- 3 * Wires (LCD Screen wire, PCB board A and PCB board Connector)
- 2 * Battery Terminals (P+ Terminal and P- Terminal)
Other components includes:
- 6 * Copper bus bars (BMS connection)
- 15 * Aluminum bus bars (Cell connection)
- 10 * Epoxy sheet (Between cell and the case)
- 26 * EVA Tape (Between cells)
- 1 * PC sheet (Top cover)
Screws Details:
- 12 * Phillip Hex M4 * 8mm (PCB board fix)
- 9 * Phillip Hex M5 * 8mm + Washer + Spring Set(Ground cable and top bracket fix)
- 7 * Phillip Hex M6 * 25mm + Washer + Spring Set(Front Panel fix)
- 10 * Phillip Round M3 * 8mm + Washer + Spring Set(BMS and LCD Screen fix)
- 12 * Phillip Pan M5 * 10mm (Latch fix)
- 16 * Hexagan Socket Pan M4 * 10mm (P+/P- Terminals fix)
- 42 * Hexagan Socket Countersunk M4 * 10mm (Handle and battery case)
- 4 * Phillip Hex M6 * 14mm + Washer + Spring Set(foot fix)
- 5 * Phillip Hex M8 * 10mm + Washer + Spring Set (P+/P- Bus bar fix)
- 8 * Phillip Round M5 * 10mm + Washer
This solution fit for CATL 230AH cells, CALB 230AH cells, LISHEN 202AH cells, and EVE 230AH cells.
Cell size:173mm*53mm*207mm
This Seplos lithium phosphate battery pack designed by Seplos technology will suitable for multi-brands of inverters as below:
Application:
