Model No: MASON-280L-DIY-Without Cells
Seplos 48V 280Ah LiFePO4 Lithium Phosphate Battery Pack DIY Kits Set Case Assemble Box Without Cells
If you want wholesale price, please do not hesitate to contact us.
minimum order :
1 unit
Supply Ability :
1000unit / Month
Stock Time :
15-20Day
Country of Origin :
China
Quantity :
The battery pack DIY kits bundle includes all the parts and materials to assemble a 51.2V 280Ah battery pack for home energy storage and solar battery storage.
The packing list is as follows, please check before formal assembly.
The packing list is as follows, please check before formal assembly.
Compatible cell information details
| Model | Brand | Cell Dimension | Electrode Distance |
| MASON-280A | GF 280AH | 72*174*204 MM | 123 MM |
| LISHEN 280AH | |||
| EVE 280K | |||
| MASON-280C | EVE 280AH | 72*174*200 MM | |
| MASON-280B | EVE 304AH | 72*174*204 MM | 89 MM |

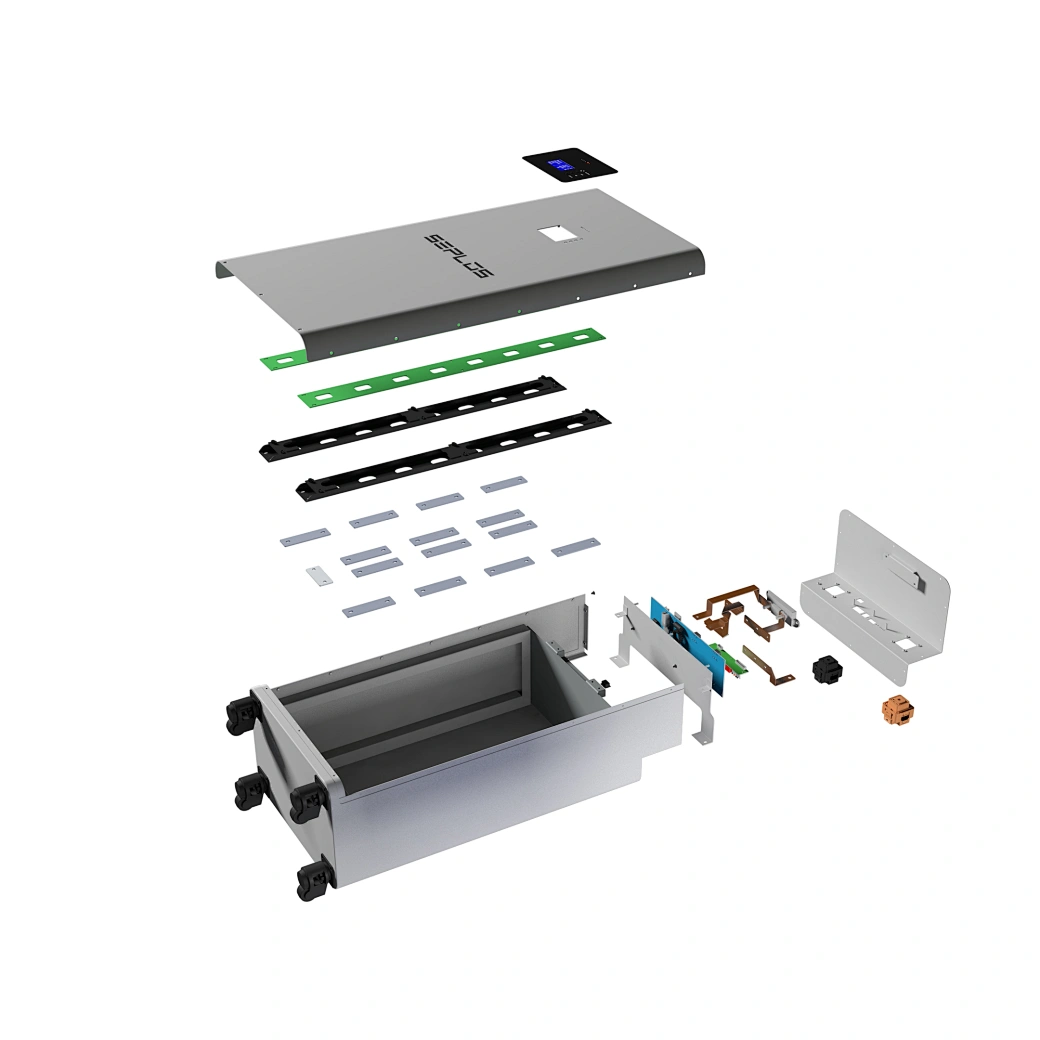

Package List
| Item | |
| Main Part | |
1 | 1 * Battery Case (Cells Container, BMS Mount Panel, Top Panel, Fixed Bar, Top Bar, Top Cover) |
| 2 | 1 * 48V 200A 16S Seplos BMS |
| 3 | 1 * 80V 400A Fuse with Base |
| 4 | 4 * Wheel |
| 5 | 2 * PCB Board for BMS and Cell Connection |
| 6 | 1 *LCD Screen |
| 7 | 1 * LCD Screen Sticker |
| 8 | 4 * Button Cap |
| 9 | 3 * Wires (LCD Screen wire, PCB board A and PCB board Connector) |
| 10 | 1 * ON-OF Switch |
| 11 | 2 * Battery Terminals (P+ Terminal and P- Terminal) |
| Other Components | |
| 1 | 6 * Copper bus bars (BMS connection) |
| 2 | 15 * Aluminum bus bars (Cell connection) |
| 3 | 9 * Epoxy sheet (Between cell and the case) |
| 4 | 28 * EVA Tape (Between cells) |
| 5 | 40 * PC Film |
| Screws Details | |
| 1 | 32 * Hex Flange Nut M6 (To Fix The Aluminum Bus Bars) |
| 2 | 12 * Phillip Hex M4 * 8mm (PCB board fix) |
| 3 | 13 * Phillip Hex M5 * 8mm + Washer + Spring Set(Ground cable and top bracket fix) |
| 4 | 7 * Phillip Hex M5 * 8mm + Washer + Spring Set(Top bar fix) |
| 5 | 9 * Phillip Round M3 * 8mm + Washer + Spring Set(BMS fix) |
| 6 | 6 * Phillip Round M3 * 6mm + Washer + Spring Set(LCD Screen fix) |
| 7 | 8 * Hexagon Socket Pan M4 * 10mm (P+/P- Terminals fix) |
| 8 | 29 * Hexagon Socket Countersunk M4 * 10mm (Battery case and Top cover) |
| 9 | 18 * Phillip Hex M6 * 14mm + Washer + Spring Set(foot fix) |
| 10 | 4 * Phillip Hex M8 * 10mm + Washer + Spring Set (P+/P- Bus bar fix) |
Low Voltage 48V Energy Storage Solution - Suitable Inverters
( If the inverter is not on the list, do not hesitate to get in touch with our engineer )
| Brand | Protocol | Communication | Versions |
| Pylontech | CAN-Bus-Protocol-PYLON | CAN | V1.3 |
| Goodwe | Goodwe Communication Protocol | CAN | V1.5 |
| Lolis | CAN Communication Protocol | CAN | V1.0 |
| Sofar | BMS CAN BUS Protocol | CAN | V1.0 |
| Growatt-SPF | Growatt BMS CAN-Bus-Protocol-Low-Voltage | CAN | V1.05 |
| Growatt-SPH | Growatt BMS Communication Protocol Of Growatt Low Voltage Battery | CAN | V1.01 |
| SMA | FSS-ConnectingBat-TI-EN-20W | CAN | V2.0 |
| Victron | Can-Bus_Bms_Protocol | CAN | V1.0 |
| LUXPOWER | Luxpowertek Battery CAN Protocol | CAN | V1.0 |
| Studer | Technical Specification Studer BMS Protocol | CAN | V1.03 |
| TBB | TBB BMS CAN Communication V1.02 | CAN | V1.02 |
| Deye | CAN-Bus-Protocol-PYLON-V1.3 | CAN | V1.0 |
| Sorocec | 2_CAN Protocol 1.0 | CAN | V1.0 |
| MEGAREVO | Hybrid Inverter_5K_BMS Protocol V1.01 | CAN | V1.01 |
| Amensolar | CAN-Bus-Protocol-PYLON | CAN | V1.0 |
| Sacolar | Growatt BMS CAN-Bus-Protocol-Low-Voltage | CAN | V1.05 |
| MUST | PV1800F-CAN Communication Protocol | CAN | V1.04.04 |
| AFORE | Luxpowertek Battery CAN Protocol | CAN | V1.0 |
| Pylontech | RS485-Protocol-Pylon-Low-Voltage | 485 | V3.5 |
| Voltronic Power | Voltronic Inverter And BMS 485 Communication Protocol | 485 | V1.0 |
| SRNE | PACE BMS Modbus Protocol For RS485 | 485 | V1.3 |
| Deye | RS485-Protocol-Pylon-Low-Voltage | 485 | V1.0 |
| Growatt-SPF | SPF BMS RS485 | 485 | V2.01 |
