EU Stock Seplos Mason Battery Pack Box DIY Kit Bundle 280Ah 51.2V LFP Energy Storage 48V DIY LiFePO4 Battery
MASON-280-N-DIY
Stop paying for overpriced, pre-assembled batteries. With the Seplos DIY Battery Kit, you get everything you need to build a professional-grade 48V LiFePO4 battery pack, without the expert price tag or the hunt for compatible parts – just pure, hands-on building satisfaction.
minimum order
1 piece
Supply Ability
3000piece / Month
Country of Origin
China
Stock Time
15Day
Quantity:
Description
This 51.2V 280Ah LiFePO4 battery box kit aims to build a 14.33Kwh battery pack for energy storage. This bundle kit are designed by Seplos which is for a factory solution. The factory solution provides the raw material and the production line facility including the battery module assembly machine and aging machine, which can customize factory plans for mass production of energy storage batteries according to the client's production needs. Up to now, Seplos successfully helped clients in Austria, Armenia, South Africa, Jamaica, and France establish local factories and achieve significant economic benefits.
Features
- Automotive-grade lithium battery
- Safer use
- Plug-and-play compatibility
- Passive balancing
- Active balancing
- Bluetooth monitoring
- Scalable energy storage
Technical specifications
BMS: Smart 16S 200A (Max 32pcs In Parallel)
Waterproof class: IP20
Battery Size: (L*W*H)440*750*251mm
Weight(Kits): 30kg
Display: LCD Screen
Built-in battery management system.
CAN/RS485*2 inverter communication.
BMS: Smart 16S 200A (Max 32pcs In Parallel)
Waterproof class: IP20
Battery Size: (L*W*H)440*750*251mm
Weight(Kits): 30kg
Display: LCD Screen
Built-in battery management system.
CAN/RS485*2 inverter communication.
Compatible cell information details
| Model | Brand | Cell Dimension | Electrode Distance |
| MASON-280A | GF 280AH | 72*174*204 MM | 123 MM |
| LISHEN 280AH | |||
| EVE 280K | |||
| MASON-280C | EVE 280AH | 72*174*200 MM | |
| MASON-280B | EVE 304AH | 72*174*204 MM | 89 MM |
| MB31 314AH | 72*174*204 MM | 123 MM |
Package List
| Item | |
| Main Part | |

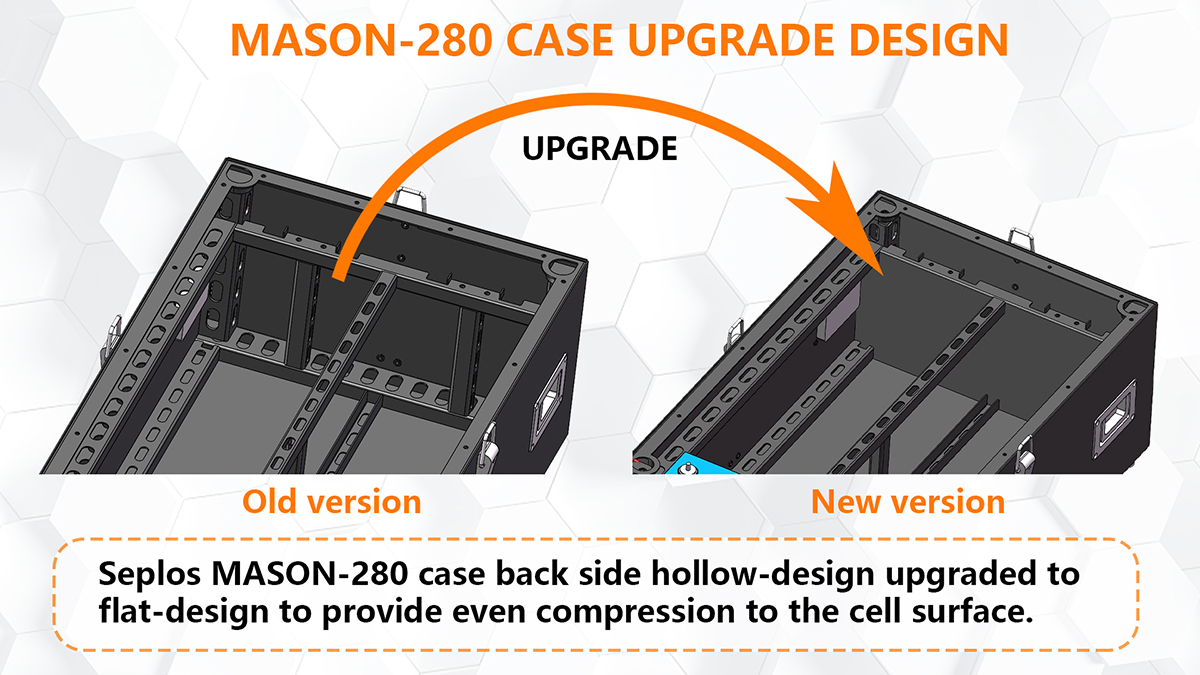

1 | 1 * Battery Case (Main Box, Front Panel, Top Bracket, Front Bracket, Top cover) |
| 2 | 1 * 48V 200A 16S Seplos BMS |
| 3 | 1 * 10A 16S Relay Active Balance |
| 4 | 1 * 80V 400A Fuse with Base |
| 4 | 4 * Handle and stand |
| 5 | 2 * PCB Board for BMS and Cell Connection |
| 6 | 3 *Upper and Lower Latch lock |
| 7 | 1 * LCD Screen |
| 8 | 1 * LCD Screen Sticker |
| 9 | 4 * Button Cap |
| 10 | 3 * Wires (LCD Screen wire, PCB board A, and PCB board Connector) |
| 11 | 2 * Battery Terminals (P+ Terminal and P- Terminal) |
| 12 | 1 * ON-OF Switch |
| Other Components | |
| 1 | 6 * Copper bus bars (BMS connection) |
| 2 | 15 * Aluminum bus bars (Cell connection) |
| 3 | 10 * Epoxy sheet (Between cell and the case) |
| 4 | 26 * EVA Tape (Between cells) |
| 5 | 1 * PC sheet (Top cover) |
| 6 | 4 * Terminal dustproof Cap |
| Screws Details | |
| 1 | 32 * Hex Flange Nut M6 (To Fix The Aluminum Bus Bars) |
| 2 | 12 * Phillip Hex M4 * 8mm (PCB board fix) |
| 3 | 9 * Phillip Hex M5 * 8mm + Washer + Spring Set(Ground cable and top bracket fix) |
| 4 | 7 * Phillip Hex M6 * 25mm + Washer + Spring Set(Front Panel fix) |
| 5 | 6 * Phillip Round M3 * 8mm + Washer + Spring Set(BMS fix) |
| 6 | 4 * Phillip Round M3 * 6mm + Washer + Spring Set(LCD Screen fix) |
| 7 | 12 * Phillip Pan M5 * 10mm (Latch fix) |
| 8 | 16 * Hexagon Socket Pan M4 * 10mm (P+/P- Terminals fix) |
| 9 | 42 * Hexagon Socket Countersunk M4 * 10mm (Handle and battery case) |
| 10 | 6 * Phillip Hex M6 * 14mm + Washer + Spring Set(foot fix) |
| 11 | 5 * Phillip Hex M8 * 10mm + Washer + Spring Set (P+/P- Bus bar fix) |
Low Voltage 48V Energy Storage Solution - Suitable Inverters
( If the inverter is not on the list, do not hesitate to get in touch with our engineer )
| Brand | Protocol | Communication | Versions |
| Pylontech | CAN-Bus-Protocol-PYLON | CAN | V1.3 |
| Goodwe | Goodwe Communication Protocol | CAN | V1.5 |
| Lolis | CAN Communication Protocol | CAN | V1.0 |
| Sofar | BMS CAN BUS Protocol | CAN | V1.0 |
| SMA | FSS-ConnectingBat-TI-EN-20W | CAN | V2.0 |
| Victron | Can-Bus_Bms_Protocol | CAN | V1.0 |
| LUXPOWER | Luxpowertek Battery CAN Protocol | CAN | V1.0 |
| Studer | Technical Specification Studer BMS Protocol | CAN | V1.03 |
| TBB | TBB BMS CAN Communication V1.02 | CAN | V1.02 |
| Deye | CAN-Bus-Protocol-PYLON-V1.3 | CAN | V1.0 |
| Sorocec | 2_CAN Protocol 1.0 | CAN | V1.0 |
| MEGAREVO | Hybrid Inverter_5K_BMS Protocol V1.01 | CAN | V1.01 |
| Amensolar | CAN-Bus-Protocol-PYLON | CAN | V1.0 |
| MUST | PV1800F-CAN Communication Protocol | CAN | V1.04.04 |
| AFORE | Luxpowertek Battery CAN Protocol | CAN | V1.0 |
| Pylontech | RS485-Protocol-Pylon-Low-Voltage | 485 | V3.5 |
| Voltronic Power | Voltronic Inverter And BMS 485 Communication Protocol | 485 | V1.0 |
| SRNE | PACE BMS Modbus Protocol For RS485 | 485 | V1.3 |
| Deye | RS485-Protocol-Pylon-Low-Voltage | 485 | V1.0 |
