A Complete Guide to Installing a BMS on a LiFePo4 Battery

In today's rapidly evolving energy landscape, ensuring the safety and longevity of battery systems, particularly lithium iron phosphate (LiFePo4) batteries, is paramount. An essential component in maximizing the performance of these batteries is the Battery Management System (BMS). This article will provide a comprehensive guide on how to install a BMS on a LiFePo4 battery, enabling businesses to enhance their battery operations and ensure optimal safety.

Understanding the Importance of a BMS for LiFePo4 Batteries

A Battery Management System (BMS) serves as the brain of a battery pack, overseeing critical functions such as monitoring voltage, temperature, and state-of-charge (SOC) of individual cells. For LiFePo4 batteries, which are known for their safety and stability, a BMS is vital in preventing overcharging, deep discharging, and thermal runaway—common issues that can lead to catastrophic failures.

By integrating a BMS with your LiFePo4 battery, you can significantly increase its lifespan and reliability, making it suitable for applications ranging from renewable energy storage to electric vehicles. Furthermore, the BMS can improve overall system efficiency and ensure compliance with safety standards, making it an indispensable addition for businesses operating within this space.

Step-by-Step Process for Installing a BMS on a LiFePo4 Battery

1. Gather Required Tools and Materials

Before beginning the installation process, make sure you have all necessary materials on hand. You will need the following:

- LiFePo4 battery pack

- BMS unit compatible with LiFePo4 chemistry

- Wiring harness and connectors

- Insulation materials

- Multimeter for testing connections

- Safety equipment (gloves, goggles)

2. Prepare the Battery Pack

Begin by ensuring that the LiFePo4 battery pack is fully charged and safely disconnected from any load. Open the battery enclosure if applicable and carefully inspect the individual cells for any damage or irregularities.

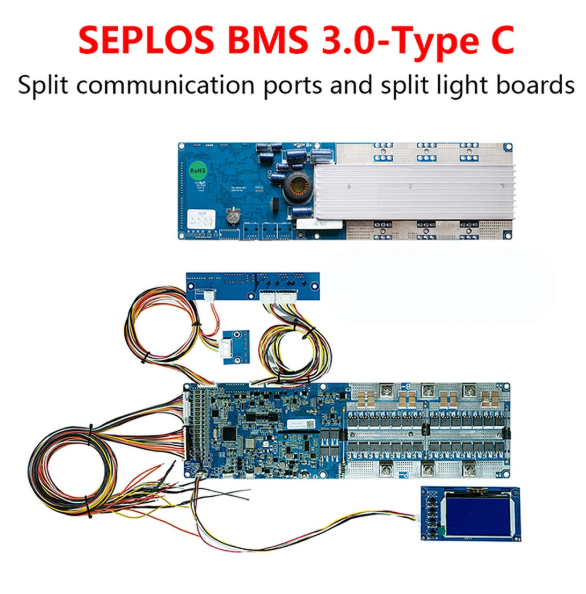

3. Connect the BMS

Follow these steps to connect the BMS to the battery:

- Connect Cell Wires: Attach the BMS wires to each cell, ensuring the correct sequence. This is crucial for proper voltage monitoring.

- Install Sense Wires: Connect sense wires to monitor the voltage and temperature of each cell. Be meticulous to avoid crossed connections.

- Connect Main Power Cables: Securely attach the BMS's main positive and negative cables to the battery terminals. This connection powers the BMS itself.

- Integrate the Communication Line: If your BMS supports communication with other systems, connect the communication line accordingly.

4. Test the Installation

Once all connections are made, use a multimeter to check the voltage across each cell. Confirm that the BMS indicator lights function correctly and that the system communicates as intended.

Conclusion

Installing a Battery Management System on a LiFePo4 battery bms is essential for ensuring operational efficiency, safety, and longevity. By following the outlined steps, businesses can successfully integrate a BMS into their battery systems, contributing to improved performance and reliability. Investing time and resources into this installation process is strategically advantageous and enhances the overall effectiveness of LiFePo4 batteries in various applications.
