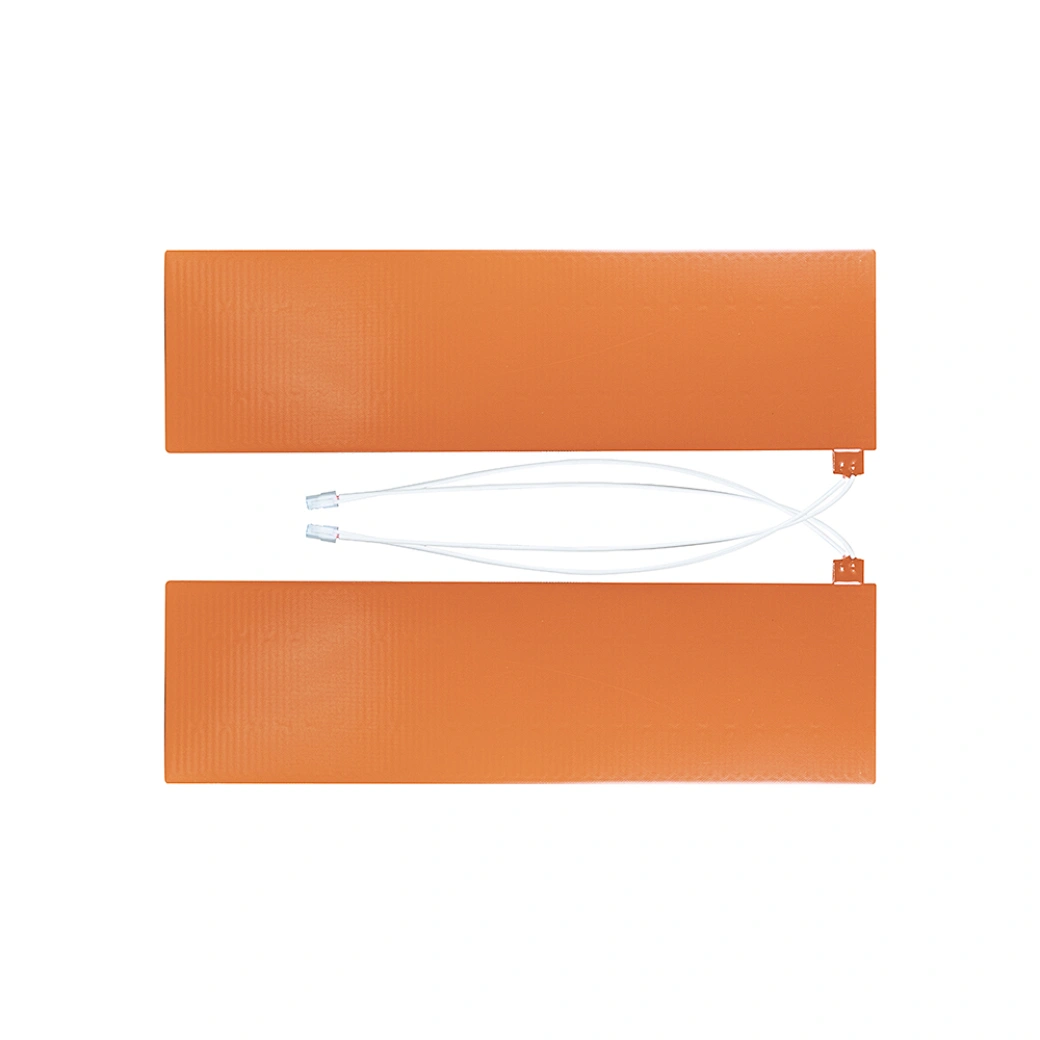

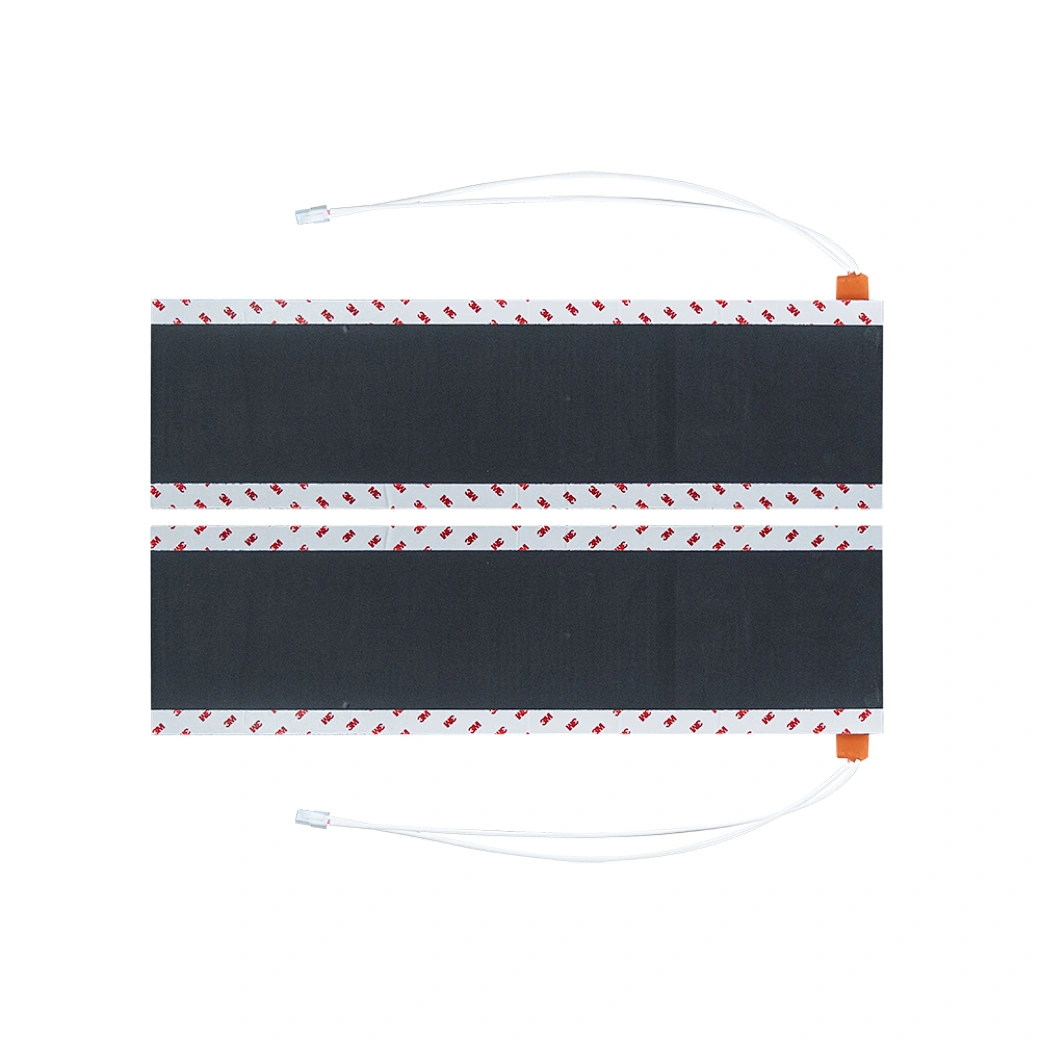

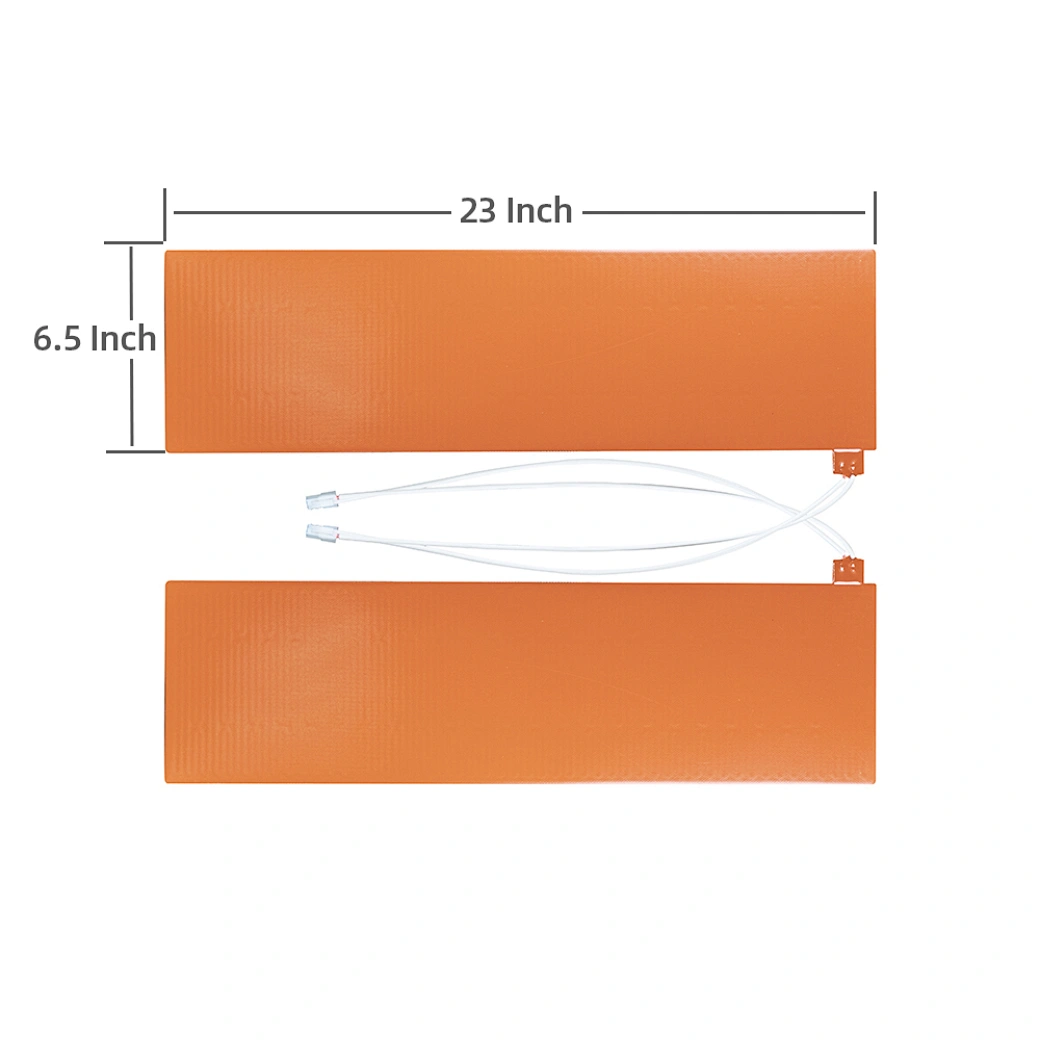

Seplos LiFepo4 Battery Heating Pad For Stackable Mason 280 DIY Battery Box
What is a battery heating Pad?
A battery heating pad is a heating device specifically designed for LiFePO4 (lithium iron phosphate) batteries.
Why Do We need the heating pads？
Batteries can be charged and discharged over a large temperature range, but the charge temperature is limited. When temps fall below freezing, the electrical performance of lithium-ion batteries declines, and when conditions are cold enough (below -20℃), they can fail to transfer any charge. So it is important to fit your LiFePO4 battery with the heating pad. Seplos added Mason 280 with a heating pad, automatically heating up when the temperature is below 0 ℃.
Technical Parameters
| Model | Heating Pad |
| Total Power(W) | 200W |
| Cell Temperature Rise(℃/H) | 5.9℃ |
| Power Density(W/cm2) | 0.104W |
| Rated Voltage(V) | 51.2VDC |
| Minimum Voltage(V) | 43.2V |
| Maximum Voltage(V) | 57.6V |
| Single Rated Power(W) | 100W |
| Single Resistance(Ω) | 33.18Ω±5% |
| Single Current(A) | 1.736A |
| Total Thickness(MM) | 4.6±0.3MM |
| Voltage Withstand Capability | DC 500V, 1min |
| Electrical Insulation | >500MΩ, @DC 1000V |
Here is the video to show the heating pad installation and testing:
BMS with heating function needs to be customized because the heating pad size is not specific, customer need to purchase by themself, and current can not be over 4A.

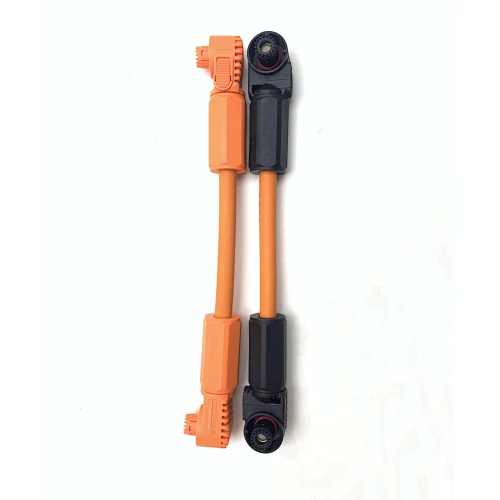

- Seplos Power Parallel Cable For 104 W Lithium Phosphate Energy Storage Battery Pack

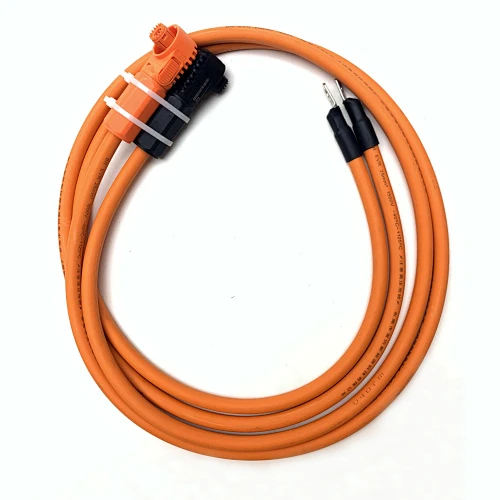

- Seplos Power Inverter Cable For 104 W 104 L LifePo4 LFP Battery Pack For Energy Storage
