Seplos 48V 400Ah BESS Battery Energy Storage 51.2V 20KWH LiFePO4 Battery With Inverter All In One Energy Storage
XTREME-20.48
If you want wholesale price, please do not hesitate to contact us.
minimum order
1 unit
Supply Ability
1000unit / Month
Country of Origin
China
Stock Time
15-20Day
Quantity:

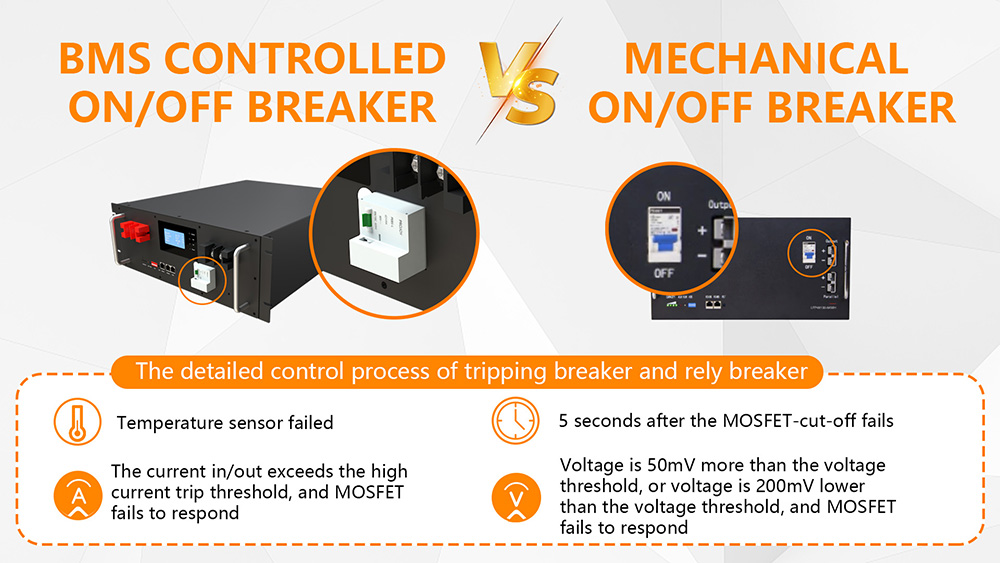

Seplos Xtreme is a 20kWh all-in-one home energy storage system that uses brand-new Grade A battery cells. It is equipped with a 5KVA inverter, and each battery module is designed with a circuit breaker controlled by the Battery Management System (BMS) to protect the battery system’s circuitry. Additionally, every module is equipped with aerosol fire suppression for fire prevention, ensuring the most comprehensive protection.
Features
- Automotive-grade lithium battery
- Safer use
- Plug-and-play compatibility
- Passive balancing
- Bluetooth monitoring
- Aerosol extinguishing
- Scalable energy storage
Technical specifications
Nominal Voltage: 48V /51.2V
Nominal Voltage: 48V /51.2V
Rated capacity: 400Ah
BMS: Smart 16S 100A
Power: 20480Wh
Cycle Life: >4500 Cycles
Max. Charging Current: 100A
Max. Discharge Current: 100A
Waterproof class. : IP20
Battery Size: (L*W*H)580*450*995mm
Weight: 224kg
Display: LCD Screen
Built-in battery management system.
CAN/RS485*2 inverter communication.
Parameter
| Item | Specifications |
Rated energy(kWh) | 20KWh |
| Nominal Voltage(V) | 51.2V |
| Nominal Capacity(Ah) | 400Ah |
| Working Voltage(V) | 42V~58.4V |
| Rated charge/discharge Current(A) | 50A/100A @25±2℃ |
| Maximum charge/discharge current | 100A@25±2℃ |
| Working Temperature | 0～40℃(Charge) -20～40℃(Discharge) |
| Weight(Kg) | 224KG |
| Dimension(mm) | 580*450*995MM |
| Cycle life | 4500 cycles @25℃ 50A charge and discharge current 70% standard capacity 90% DOD |
| Communication mode | CAN&RS485 |
Item Detail
Low Voltage 48V Energy Storage Solution - Suitable Inverters
| Brand | Protocol | Communication | Versions |
| Pylontech | CAN-Bus-Protocol-PYLON | CAN | V1.3 |
| Goodwe | Goodwe Communication Protocol | CAN | V1.5 |
| Lolis | CAN Communication Protocol | CAN | V1.0 |
| Sofar | BMS CAN BUS Protocol | CAN | V1.0 |
| SMA | FSS-ConnectingBat-TI-EN-20W | CAN | V2.0 |
| Victron | Can-Bus_Bms_Protocol | CAN | V1.0 |
| LUXPOWER | Luxpowertek Battery CAN Protocol | CAN | V1.0 |
| Studer | Technical Specification Studer BMS Protocol | CAN | V1.03 |
| TBB | TBB BMS CAN Communication V1.02 | CAN | V1.02 |
| Deye | CAN-Bus-Protocol-PYLON-V1.3 | CAN | V1.0 |
| Sorocec | 2_CAN Protocol 1.0 | CAN | V1.0 |
| MEGAREVO | Hybrid Inverter_5K_BMS Protocol V1.01 | CAN | V1.01 |
| Amensolar | CAN-Bus-Protocol-PYLON | CAN | V1.0 |
| MUST | PV1800F-CAN Communication Protocol | CAN | V1.04.04 |
| AFORE | Luxpowertek Battery CAN Protocol | CAN | V1.0 |
| Pylontech | RS485-Protocol-Pylon-Low-Voltage | 485 | V3.5 |
| Voltronic Power | Voltronic Inverter And BMS 485 Communication Protocol | 485 | V1.0 |
| SRNE | PACE BMS Modbus Protocol For RS485 | 485 | V1.3 |
| Deye | RS485-Protocol-Pylon-Low-Voltage | 485 | V1.0 |
