Seplos 48V 100A 13S 14S NCM 8S 15S 16S LFP Battery Management System BMS 3.0 For Solar Energy Battery

B-48100-A

For bulk orders, contact Seplos sales teams for better prices

minimum order

1 piece

Supply Ability

10000piece / Month

Country of Origin

China

Stock Time

5-7Day

Quantity:

Contact Now

add to cart

Description

This Seplos BMS 3.0 Type A has integrated communication ports and status lights on one board. Model 13S and 14S are suitable for NCM batteries, while 15S and 16S are for LFP batteries. This BMS model is satisfied for 48V 100A charge-discharge current batteries.

The battery management system has built-in dry contact connected to an active balancer, which can power on the balancer due to the voltage deviation the BMS has detected.

Seplos BMS 3.0 and BMS 2.0 can not be in parallel due to different roots and do not mix to update the firmware.

Features

Industrial-grade manufacture
10A current limitation
Accurate SOC calculation
Gap charging
Independent chip sampling circuits
Passive balancing

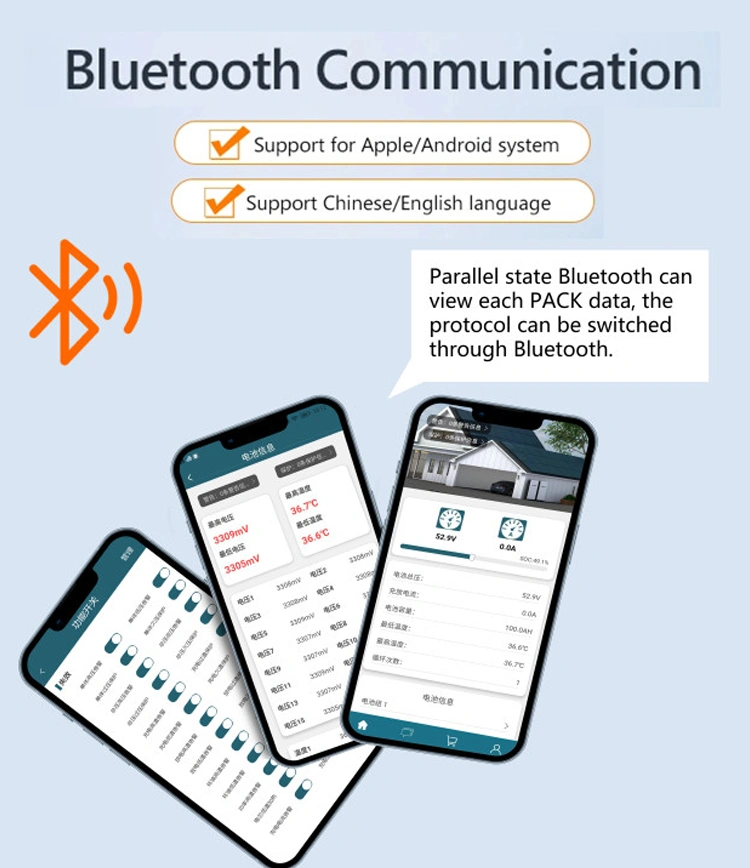

Bluetooth monitoring

Technical specifications

8S 100A

Working voltage(V): (Min) 20~29 (Max), (Type) 24
Charge voltage(V): (Min) 24~30 (Max), (Type) 28
Working temperature(℃): (Min) -20~70 (Max), (Type) 25
Storage temperature(℃): (Min) -40~85 (Max), (Type) 25
Ambient humidity(%): (Min) 10~85 (Max)
Charge-discharge current(A): (Max) 110, (Type) 100

Internal resistance: <2mΩ

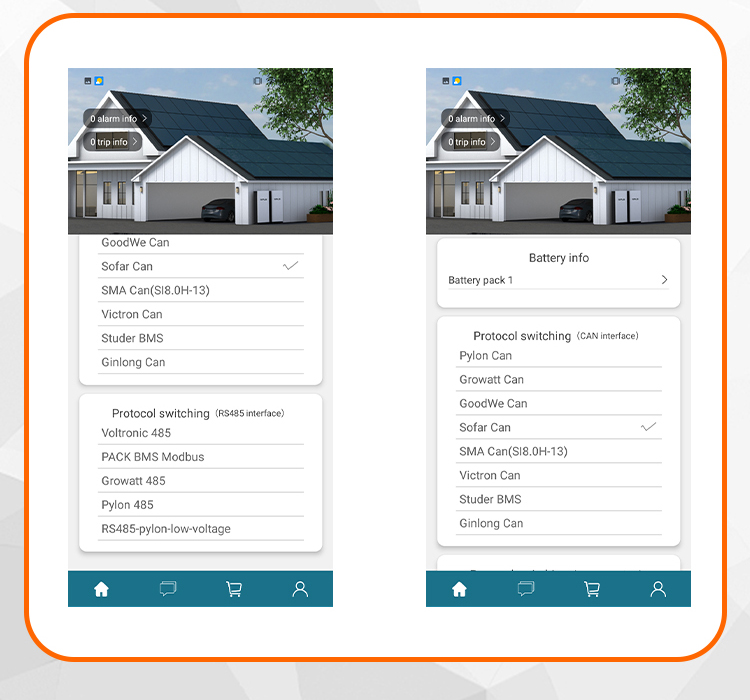

CAN/RS485*2 inverter communication.

16S 100A

Working voltage(V): (Min) 40~59 (Max), (Type) 48
Charge voltage(V): (Min) 48~60 (Max), (Type) 54
Working temperature(℃): (Min) -20~70 (Max), (Type) 25
Storage temperature(℃): (Min) -40~85 (Max), (Type) 25
Ambient humidity(%): (Min) 10~85 (Max)
Charge-discharge current(A): (Max) 110, (Type) 100

Internal resistance: <2mΩ
CAN/RS485*2 inverter communication.
