Seplos 53.2KWh 512V High Voltage Battery Systems Lifepo4 Energy Storage Distributed Bess Battery Energy Storage System

HV-50-HITEN-104
minimum order
1 piece
Supply Ability
3000piece /
Country of Origin
China
Stock Time
20Day
Quantity:
Contact Now
add to cart

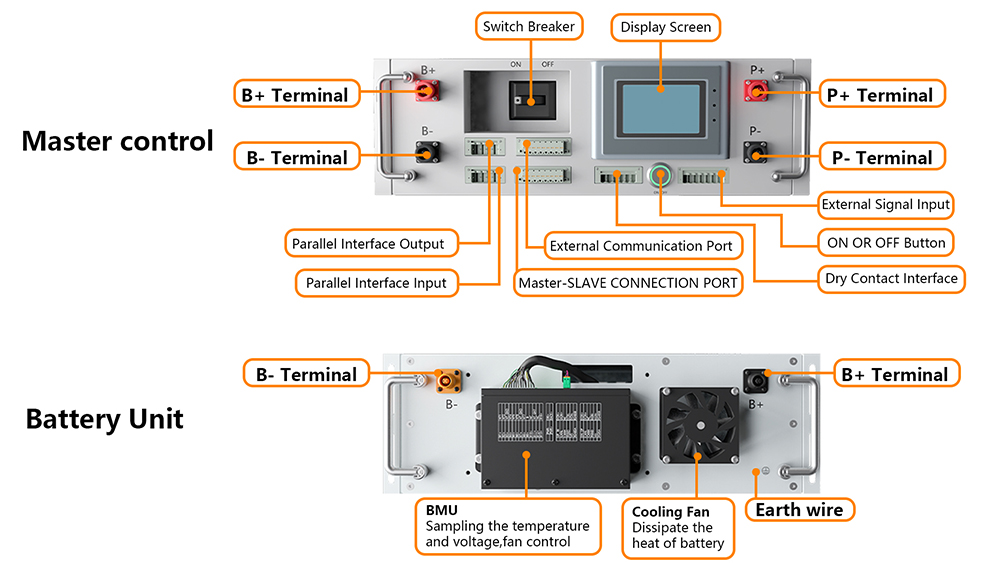

Description
Seplos Hiten 104AH is a high voltage battery systems, the power can be up to 85.19Kwh in a cabinet or even more if in parallel cabinet with a cabinet, it is a customizable energy storage system. This high voltage battery systems comes with peak shaving and load shifting functions.
The system has a single fan in every battery module, which can cool the temperature and improve the overall system performance.
Safety is essential for lithium energy storage systems. Therefore, this system has an aerosol extinguishing to ensure comprehensive protection.
Features
  • Highly integrated
  • Easy to expand
  • Standardization
  • Intelligent
  • Safety
  • Reliability
Technical Parameters
Rated energy(kWh):  53.2KWh
Battery Type:  LFP
Configuration:  10*16S1P
Nominal Voltage(V):  512V
Nominal Capacity(Ah):  104Ah
Working Voltage(V):  432V-584V
Rated charge/ discharge Current(A):  100A
Rated charge/ discharge power( KW):  51KW
Working Temperature:  - 15-45(°C)
Cycle life 6000 cycles:  6000 cycles
Communication mode:  CAN&RS485
high voltage battery systems

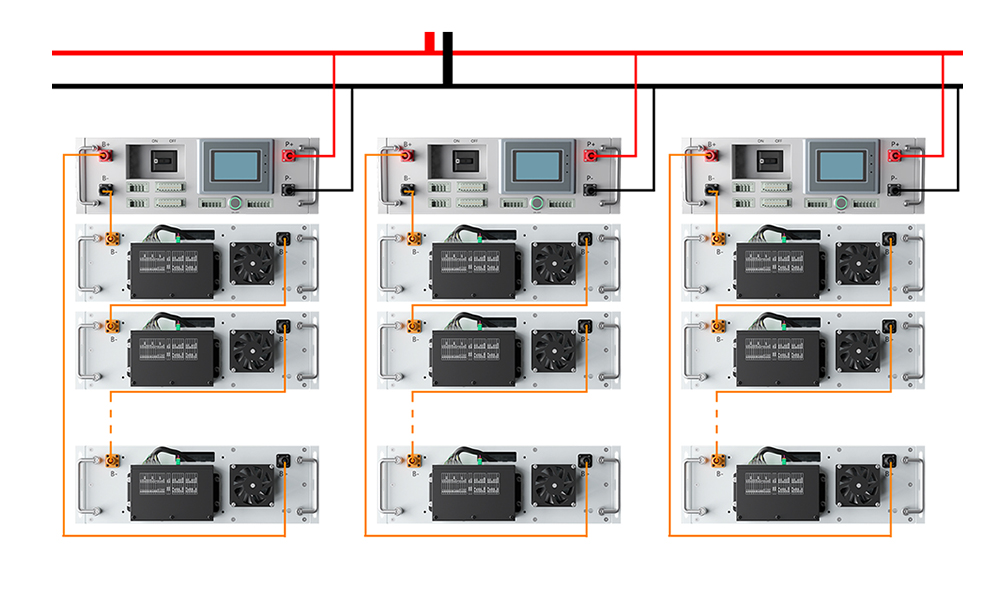

In Series Connection
high voltage battery systems
Parallel Connection
high voltage battery systems
High Voltage Energy Storage Solution - Suitable Inverters

BrandProtocolCommunicationVersions
SofarSofarSolar CAN Inverter HVCANV2.2
GoodweCAN Hybrid Inverter HVCANV1.4
DeyeCAN HVCANV1.0
AforeCAN Hybrid Inverter HVCANV2.2
